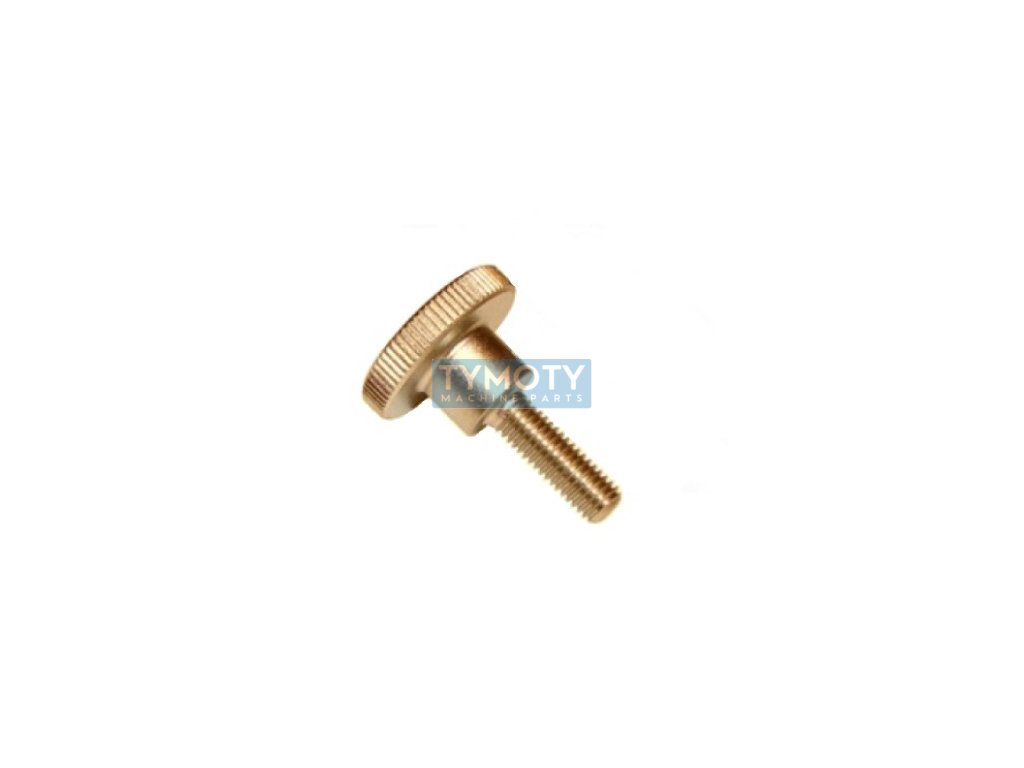

Screw with cylindrical knurled head DIN 464 M4x12 brass
Code: 834758
Product detailed description
Brass screw with cylindrical knurled head ČSN 021161 - DIN 464Additional parameters
| Category: | Fasteners > cap screws > grooved DIN 464 > brass |
|---|---|
| Weight: | 0.01 kg |
| EAN: | 4043952082966 |
| CSN standard: | 021161 |
| Diameter D (mm): | M4 |
| Diameter d1 (mm): | 8 |
| Diameter dk (mm): | 16 |
| DIN standard: | 464 |
| Head shape: | cylindrical |
| Height H (mm): | 10 |
| Height k (mm): | 3,5 |
| Length L (mm): | 12 |
| Material: | brass |
| Pitch: | 0,70 |
| Thread type: | metric |
