Screw TEX countersunk phillips DIN 7504P 3.5x16 galvanized

Product detailed description

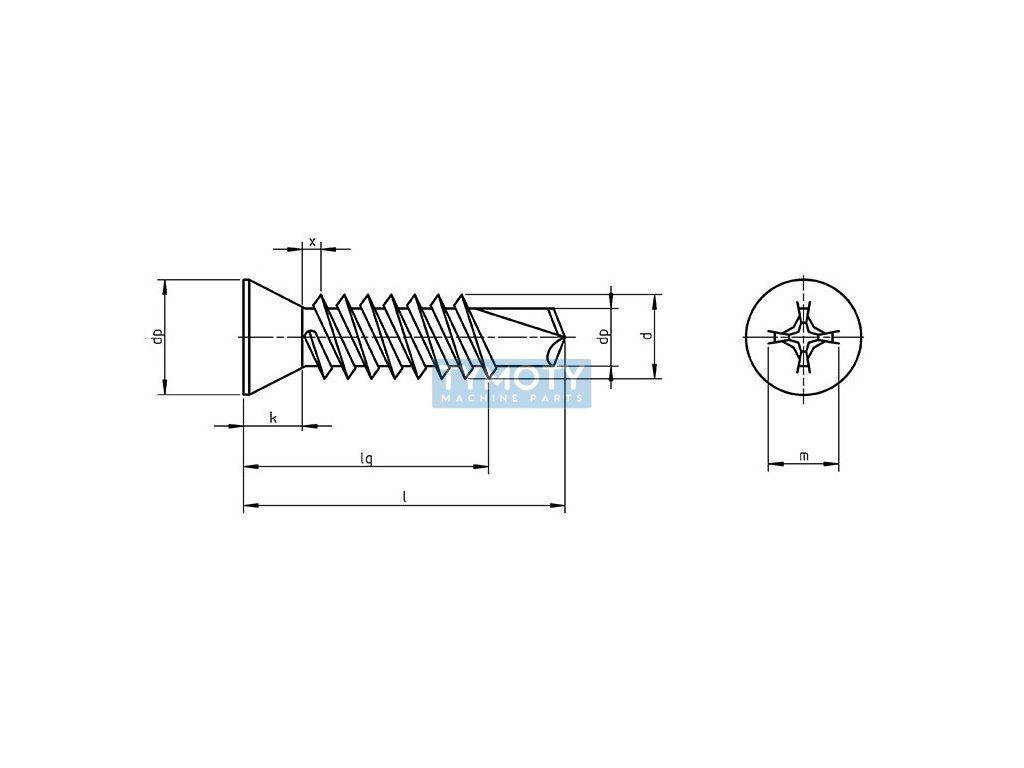

The TEX countersunk Phillips cross recess screw is manufactured according to DIN 7504P, which is equivalent to ISO 15482. This type of screw is designed for quick and efficient joining of sheets without the need for pre-drilling, which reduces assembly time and costs. The screw has a diameter of 3.5 mm and a length of 16 mm, which makes it suitable for a wide range of applications in the field of metal structures.

The main design feature of this screw is its countersunk head, which allows it to be flush with the surface, achieving an aesthetic and functional result without protruding elements. The Phillips cross recess ensures reliable torque transmission during assembly, which increases efficiency and accuracy in use.

The screw material is galvanized steel, which provides increased corrosion resistance, which is especially critical in environments with higher humidity or chemical stress. The electroplated zinc coating ensures long-term protection and reliability of the connection.

This screw is ideal for applications where a quick and strong connection of sheet metal materials is required, such as construction, metal fabrication or industrial applications. Its self-drilling capability eliminates the need for pre-drilling, simplifying the installation process and reducing the risk of material damage.
