Screw low cylinder head - groove DIN 85 M3x4 stainless steel A2
Code: 892591
Product detailed description

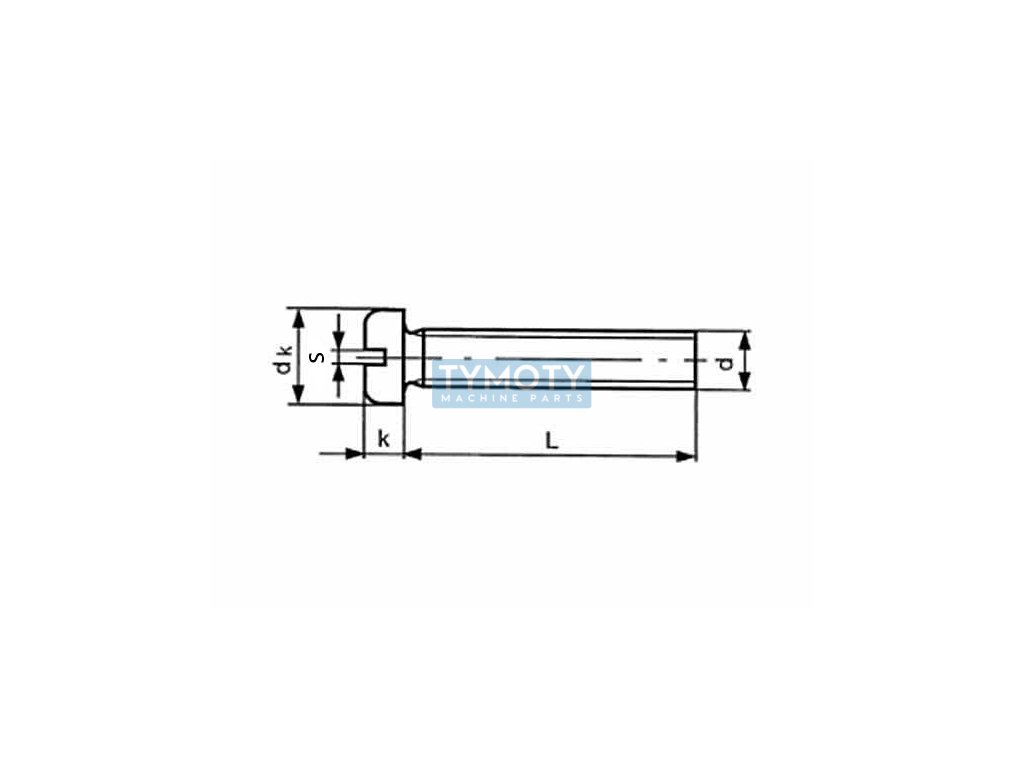

Slotted low cylinder head screw, stainless steel A2, DIN 85, ISO 1580, ČSN 021137.Additional parameters
| Category: | Fasteners > screws with rounded head > DIN 85 groove > stainless steel A2 |
|---|---|
| EAN: | 4043952700181 |
| CSN standard: | 021137 |
| Diameter D (mm): | M3 |
| Diameter dk (mm): | 6 |
| DIN standard: | 85 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 1,8 |
| ISO standard: | 1580 |
| Length L (mm): | 4 |
| Material: | stainless steel |
| Pitch: | 0,50 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 0,8 |
