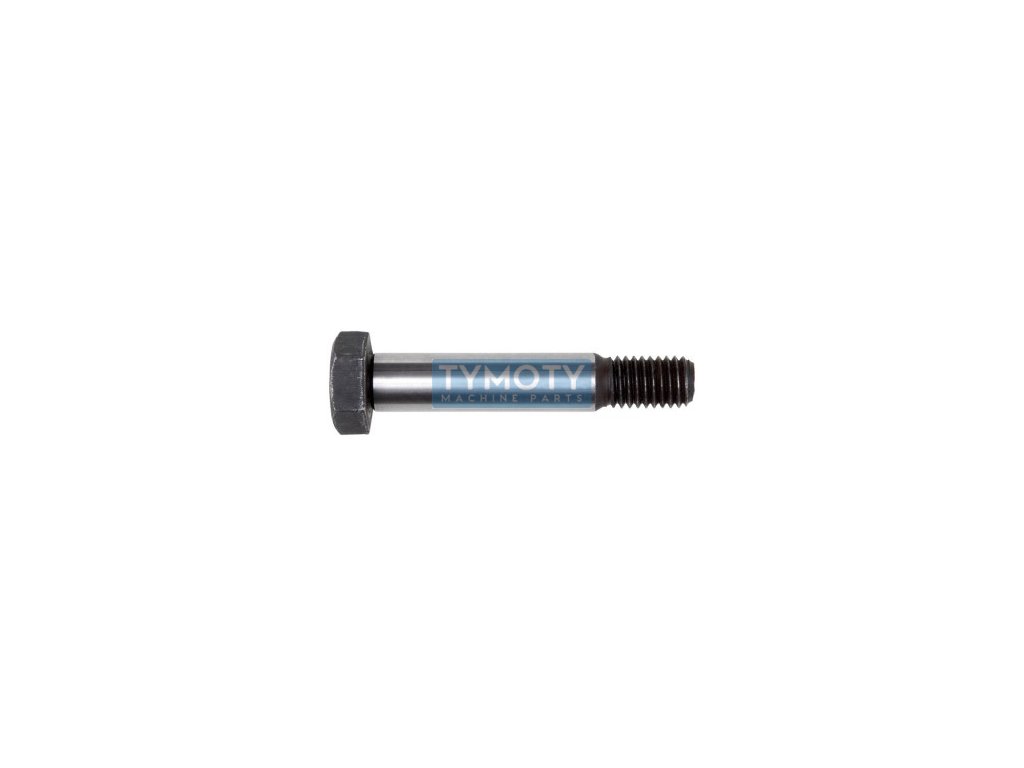

Screw flush with short thread DIN 610 M16x40-8.8 without PU

Product detailed description

The hexagon head bolt with short thread according to DIN 610 and ČSN 021112.50 is designed for applications requiring high precision and connection strength. This component is made of steel of strength class 8.8, which guarantees its high resistance to mechanical stress and suitability for use in demanding industrial conditions. The bolt is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection is not required, or where its subsequent treatment according to specific project requirements is planned.

The diameter of the bolt is M16, which means that the outer diameter of the thread is 16 mm. The total length of the bolt is 40 mm, while the thread length is 19 mm. The thread is metric with a pitch of 2.00 mm, which is standard for this type of bolt. The diameter of the fitting part, which ensures precise seating in the hole, is 17 mm. The hex head of the screw is 24 mm wide and 10 mm high, which allows the use of standard tools for assembly and disassembly.

This screw is ideal for applications where it is necessary to ensure a precise fit and a solid connection, for example in mechanical engineering, construction or in the manufacture of equipment, where the accuracy and reliability of the joints are important. Screws of this type are often used in structures where it is necessary to ensure precise positioning of parts and minimize movement in the joint.
