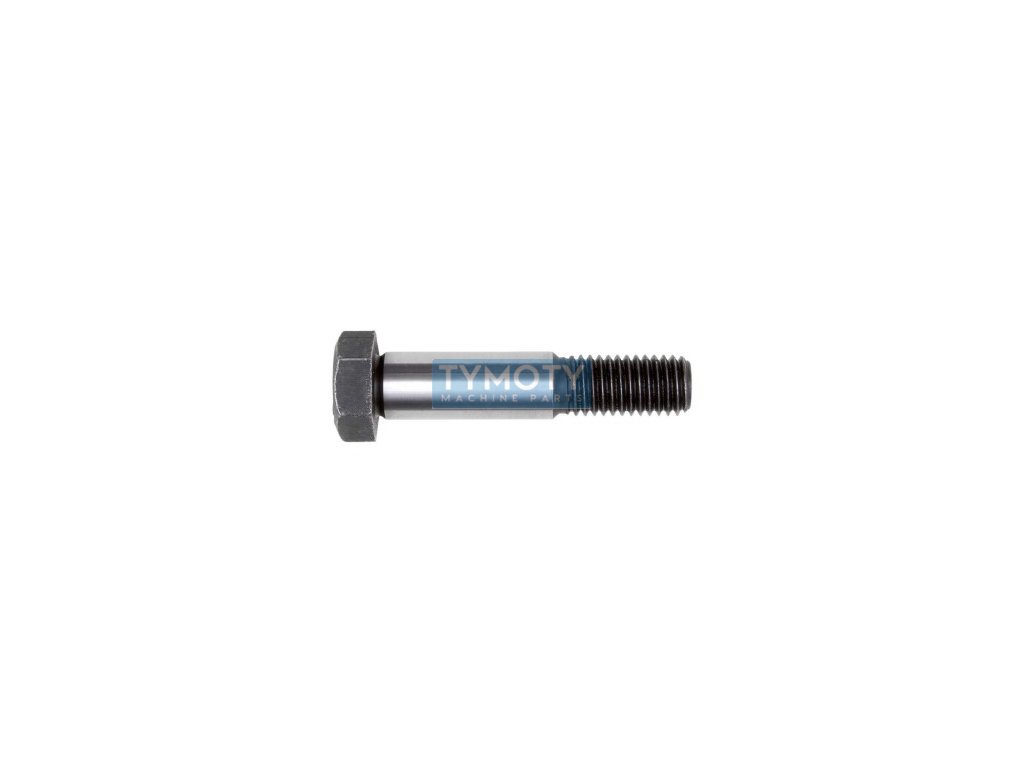

Screw flush long thread DIN 609 M20x70-8.8
Code: 819070
Product detailed description
Steel bolt with a length of 70 mm with a hexagonal head and a long metric thread M20 with a length of 30.5 mm. Steel of strength class 8.8 without surface treatment - according to the standard - DIN 609 - ČSN 021111.50.Additional parameters
| Category: | Fasteners > hexagon head screws > fitted long thread DIN 609 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.256 kg |
| EAN: | 4043952128633 |
| CSN standard: | 021111 |
| Diameter D (mm): | M20, 21 |
| DIN standard: | 609 |
| Fortress class: | 8,8 |
| Head shape: | hexagon |
| Height H (mm): | 13 |
| Material: | steel |
| Pitch: | 2,50 |
| Surface finish: | without modification |
| Thread length b (mm): | 30,5 |
| Thread type: | metric |
| Width B1 (mm): | 30 |
