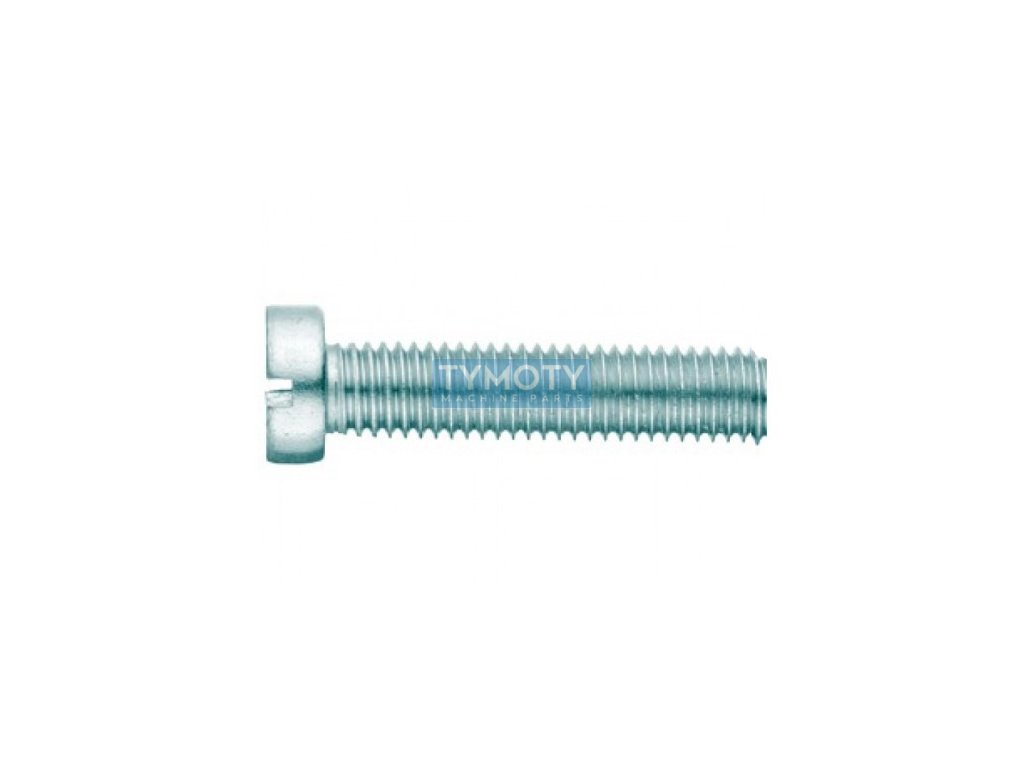

Screw cylindrical head - groove DIN 84 M8x70 galvanized
Code: 825350
Product detailed description
Slotted cylinder head screw, galvanized steel, DIN 84, ISO 1207, ČSN 021131.Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > galvanized steel 4.8 |
|---|---|
| Weight: | 0.021 kg |
| EAN: | 4043952015636 |
| CSN standard: | 021131 |
| Diameter D (mm): | M8 |
| Diameter dk (mm): | 13 |
| DIN standard: | 84 |
| Fortress class: | 4,8 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 5 |
| ISO standard: | 1207 |
| Length L (mm): | 70 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width s (mm): | 2 |
