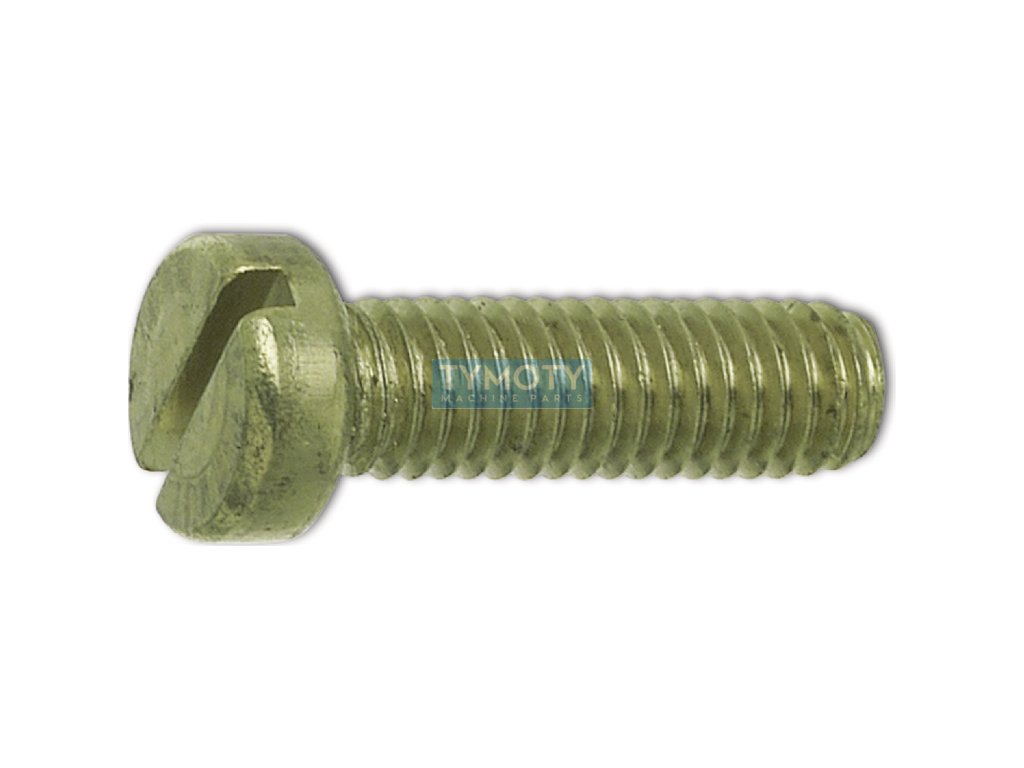

Screw cylindrical head - groove DIN 84 M6x30 brass
Code: 825495
Product detailed description
Brass slotted cylinder head screw, DIN 84, ISO 1207, ČSN 021131.Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > brass |
|---|---|
| Weight: | 0.008 kg |
| EAN: | 4043952017692 |
| CSN standard: | 021131 |
| Diameter D (mm): | M6 |
| Diameter dk (mm): | 10 |
| DIN standard: | 84 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 3,9 |
| ISO standard: | 1207 |
| Length L (mm): | 30 |
| Material: | brass |
| Pitch: | 1,00 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 1,6 |
