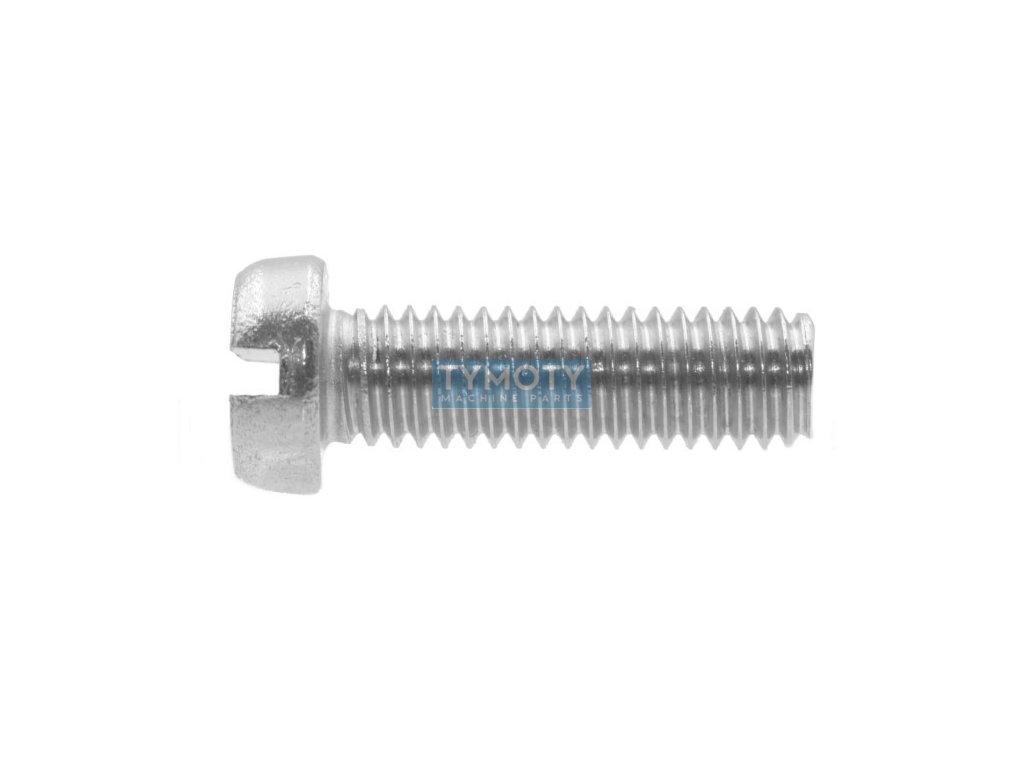

Screw cylindrical head - groove DIN 84 M6x100 stainless steel A2
Code: 892440
Product detailed description
The cylinder head screw with a straight groove according to DIN 84, ISO 1207 and ČSN 021131 is intended for precision assemblies in mechanical engineering and electrical engineering, where a clean and solid connection is required. This screw has a metric thread with a diameter of M6 and a length of 100 mm, with a thread pitch of 1.00 mm. The cylinder head has a diameter of 10 mm and a height of 3.9 mm, with a groove width of 1.6 mm. The screw is made of A2 grade stainless steel, which guarantees high corrosion resistance and is suitable for use in environments with higher humidity or chemical aggressiveness. The surface of the screw is not additionally treated, which preserves the natural properties of stainless steel. This type of screw is ideal for applications where it is necessary to ensure a reliable connection with the possibility of repeated disassembly and assembly without damage to the components.Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > stainless steel A2 |
|---|---|
| Weight: | 0.02 kg |
| EAN: | 4043952020494 |
| CSN standard: | 021131 |

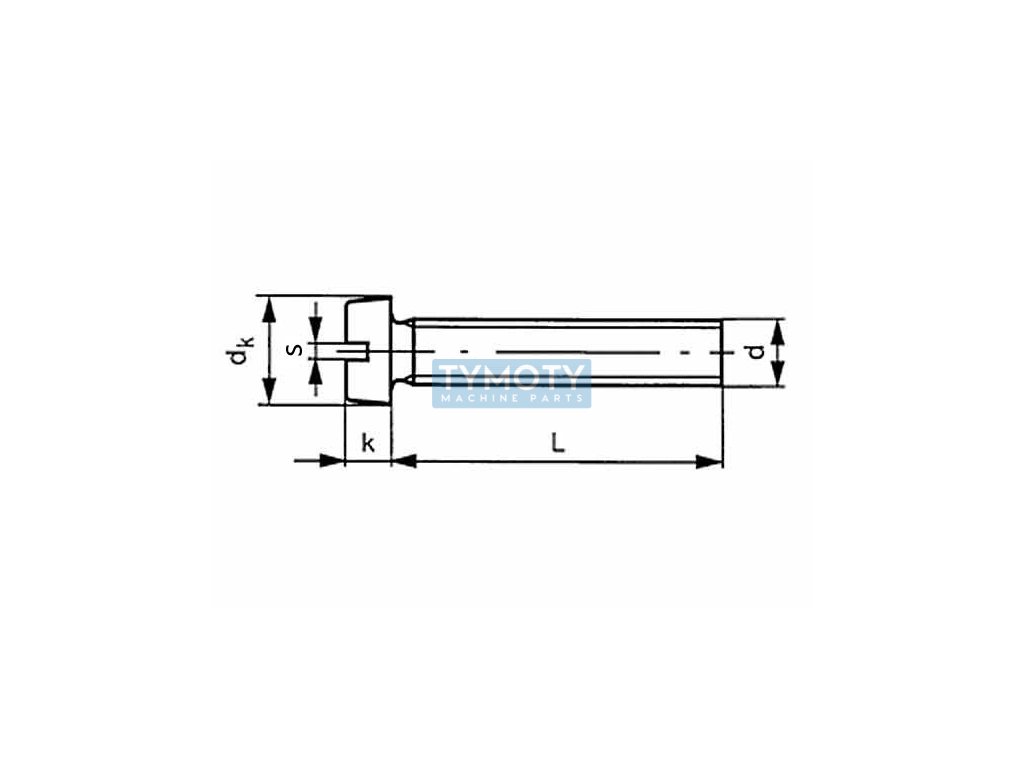

| Diameter D (mm): | M6 |
| Diameter dk (mm): | 10 |
| DIN standard: | 84 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 3,9 |
| ISO standard: | 1207 |
| Length L (mm): | 100 |
| Material: | stainless steel |
| Pitch: | 1,00 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 1,6 |
