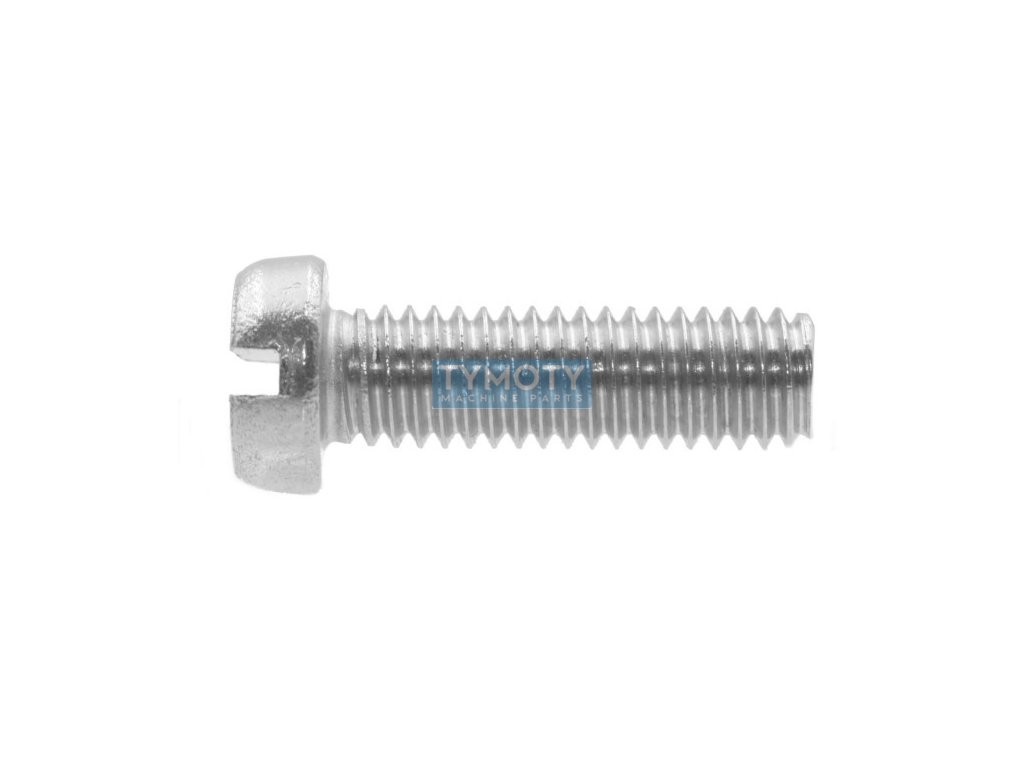

Screw cylindrical head - groove DIN 84 M5x50 stainless steel A2
Code: 892415
Product detailed description
The cylinder head screw with a straight slot according to DIN 84, ISO 1207 and ČSN 021131 is designed for applications requiring precise and strong connections, especially in the fields of mechanical engineering and electrical engineering. This screw has a metric thread with a diameter of M5 and a length of 50 mm, with a thread pitch of 0.80 mm. The cylinder head has a diameter of 8.5 mm and a height of 3.3 mm, with a continuous slot 1.2 mm wide, which allows easy assembly and disassembly using a standard flat screwdriver.The screw material is A2 grade stainless steel, which provides excellent corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure. The screw has no additional surface treatment, which guarantees its natural properties of stainless steel. This screw is suitable for applications where high strength and reliability of the connection are required, while its design features guarantee long-term functionality and durability.
Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > stainless steel A2 |
|---|---|
| Weight: | 0.007 kg |
| EAN: | 4043952020289 |
| CSN standard: | 021131 |
| Diameter D (mm): | M5 |
| Diameter dk (mm): | 8,5 |
| DIN standard: | 84 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 3,3 |
| ISO standard: | 1207 |
| Length L (mm): | 50 |
| Material: | stainless steel |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 1,2 |
