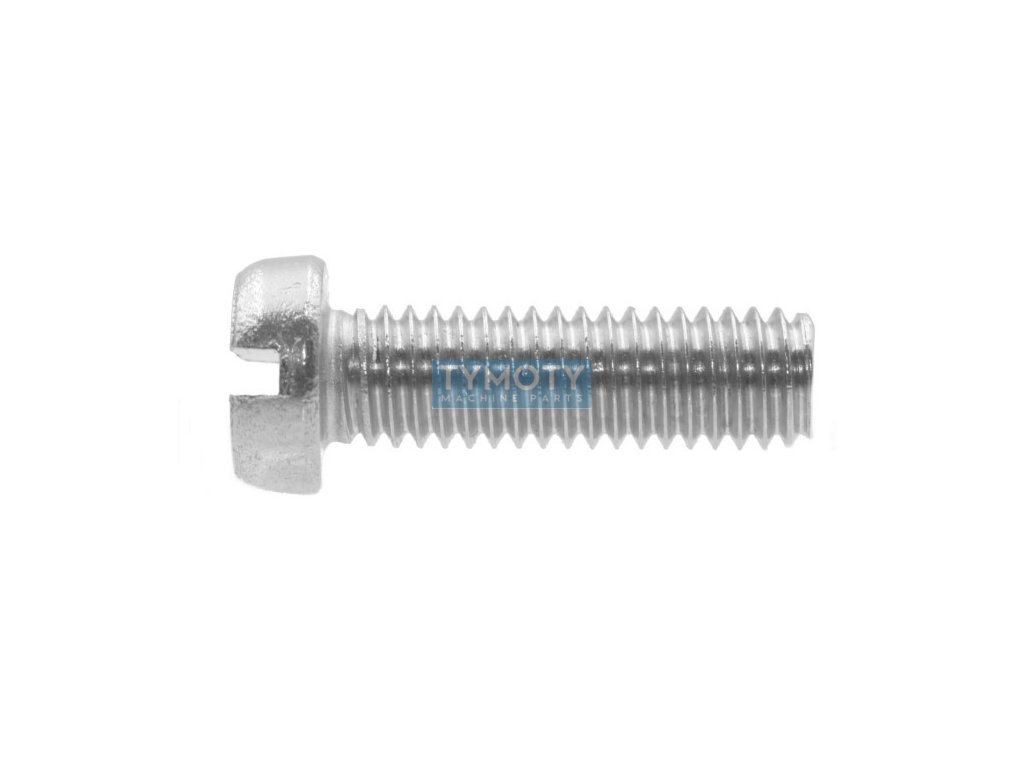

Screw cylindrical head - groove DIN 84 M4x5 stainless steel A2
Code: 892378
Product detailed description
The cylinder head screw with a straight groove according to DIN 84, ISO 1207 and ČSN 021131 is intended for precision assemblies in mechanical and electrical engineering, where a clean and solid connection is required. This screw has a metric thread with a diameter of M4 and a length of 5 mm, with a thread pitch of 0.70 mm. The cylinder head has a diameter of 7 mm and a height of 2.6 mm, while the groove is continuous with a width of 1.2 mm, which allows easy application using a standard screwdriver.The screw material is A2 grade stainless steel, which provides excellent corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure. The surface treatment is not applied, which preserves the natural properties of stainless steel. This screw is suitable for applications where high precision and reliability of the connection are required, while its design allows for easy assembly and disassembly.
Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > stainless steel A2 |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4043952019450 |
| CSN standard: | 021131 |
| Diameter D (mm): | M4 |
| Diameter dk (mm): | 7 |
| DIN standard: | 84 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 2,6 |
| ISO standard: | 1207 |
| Length L (mm): | 5 |
| Material: | stainless steel |
| Pitch: | 0,70 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 1,2 |
