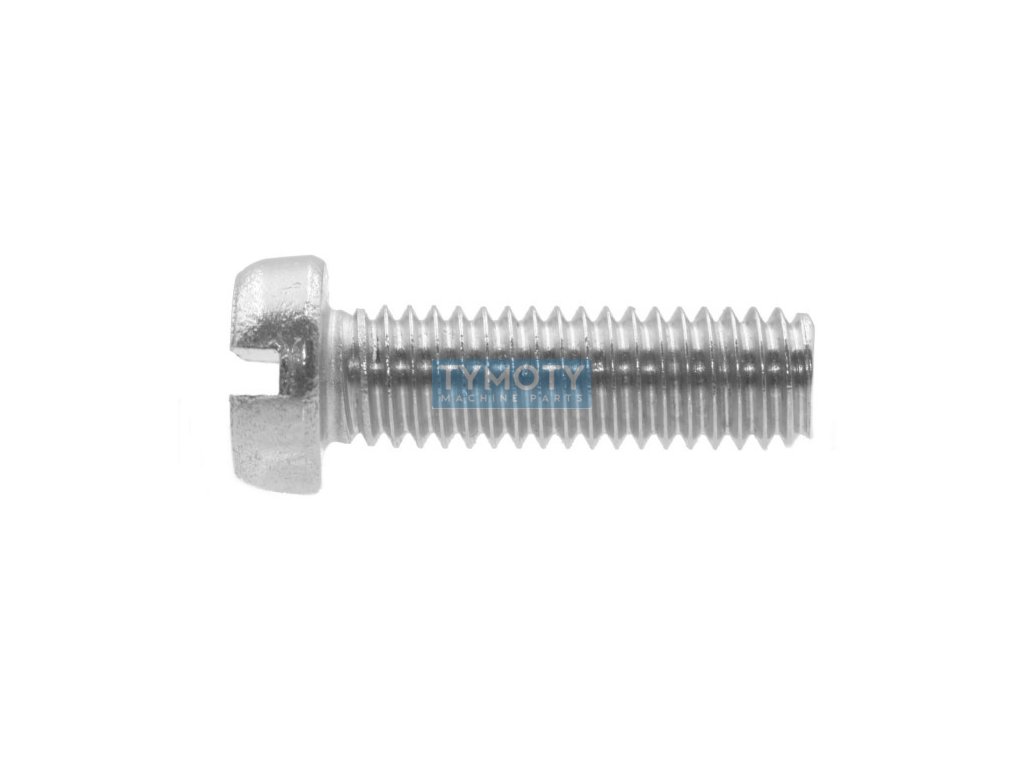

Screw cylindrical head - groove DIN 84 M2x18 stainless steel A2

Product detailed description

The cylindrical head screw with a straight groove according to DIN 84, ISO 1207 and ČSN 021131 is designed for applications where a precise and strong connection is required. This screw is made of A2 grade stainless steel, which is known for its resistance to corrosion and is suitable for use in environments with higher humidity or chemical exposure. A2 stainless steel is often used in mechanical and electrical engineering, where the emphasis is on long service life and reliability of connections.

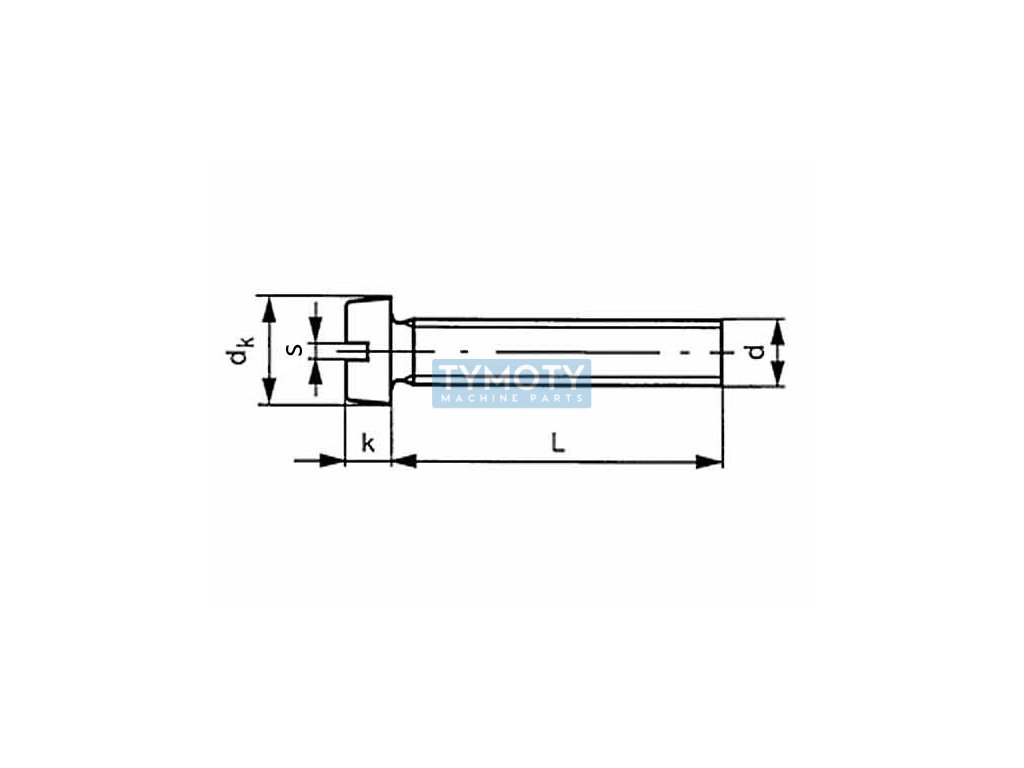

The screw has a metric M2 thread with a length of 18 mm and a pitch of 0.40 mm, which ensures compatibility with common metric nuts and threaded holes. The cylindrical head of the screw has a diameter of 3.8 mm and a height of 1.4 mm, which provides sufficient surface area for applying torque using a straight groove tool. The groove width is 0.5 mm, which is optimized for standard screwdrivers.

This screw is uncoated, which means that it retains the natural properties of stainless steel without additional protection or aesthetic modifications. Due to its design and material properties, it is ideal for precision assemblies where cleanliness and joint strength are important. The screw is suitable for use in various industries, including electronics manufacturing, precision mechanics and other applications where high precision and reliability are required.
