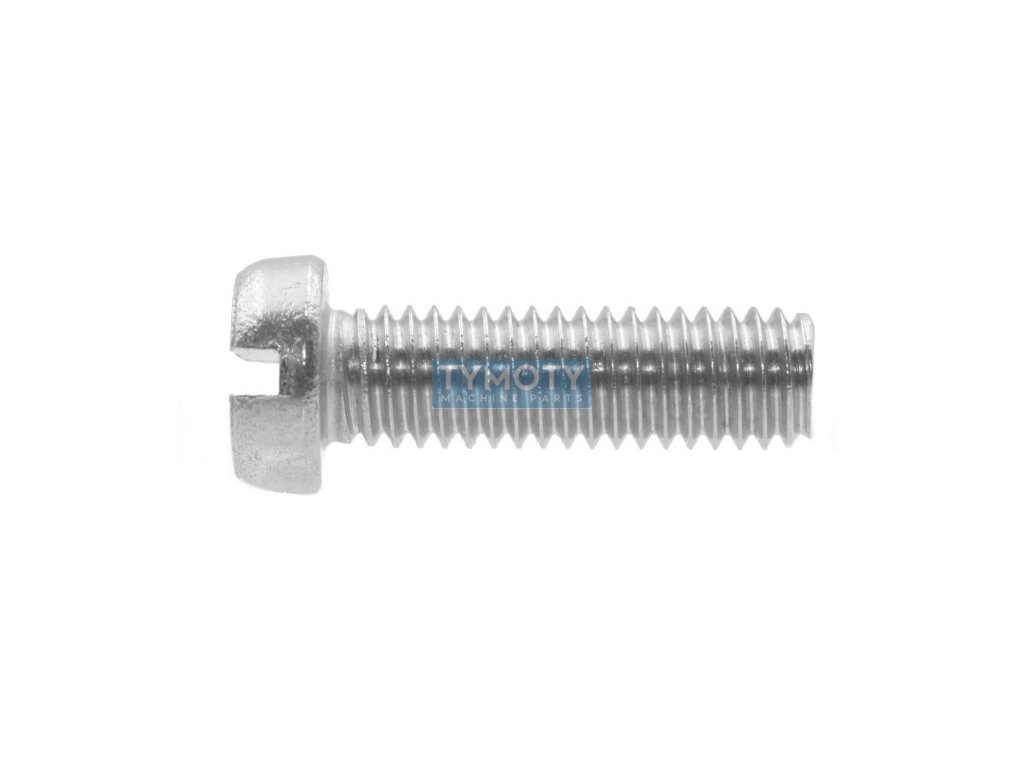

Screw cylindrical head - groove DIN 84 M2.5x12 stainless steel A2
Code: 892350
Product detailed description
Slotted cylinder head screw, stainless steel A2, DIN 84, ISO 1207, ČSN 021131.Additional parameters
| Category: | Fasteners > cap screws > DIN 84 groove > stainless steel A2 |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4043952019269 |
| CSN standard: | 021131 |
| Diameter D (mm): | M2,5 |
| Diameter dk (mm): | 4,5 |
| DIN standard: | 84 |
| Fortress class: | A2 |
| Groove type: | ongoing |
| Head shape: | cylindrical |
| Height k (mm): | 1,8 |
| ISO standard: | 1207 |
| Length L (mm): | 12 |
| Material: | stainless steel |
| Pitch: | 0,45 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 0,6 |
