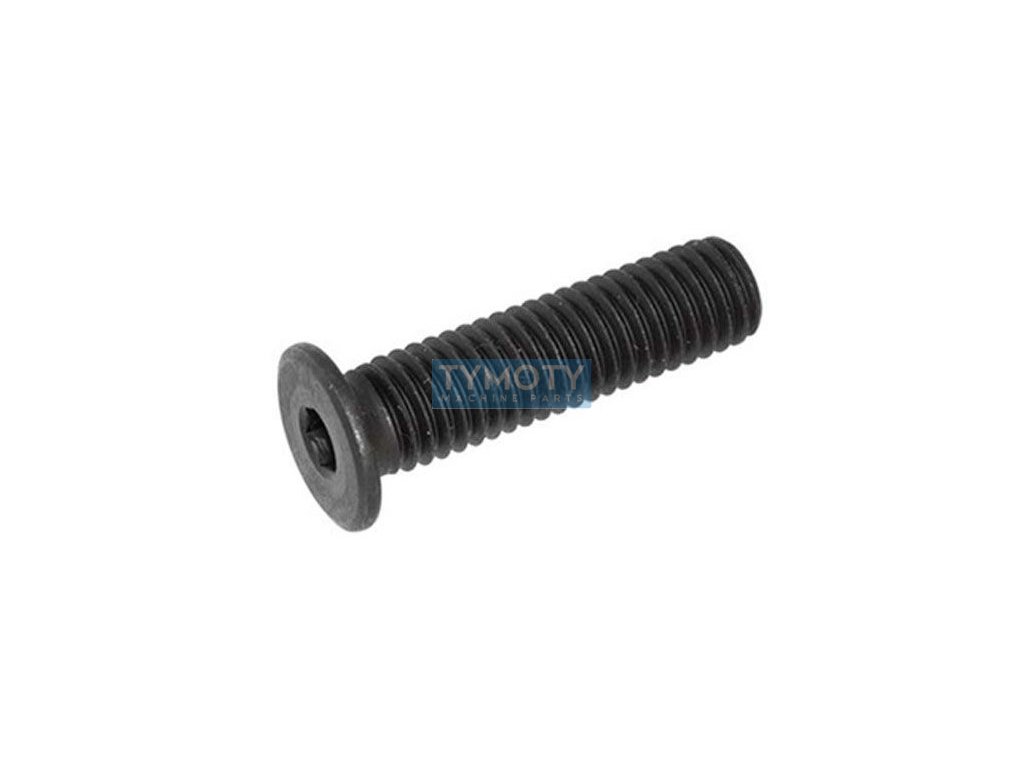

Screw cylindrical extra low head - hex M10x16-10.9 blackened

Product detailed description

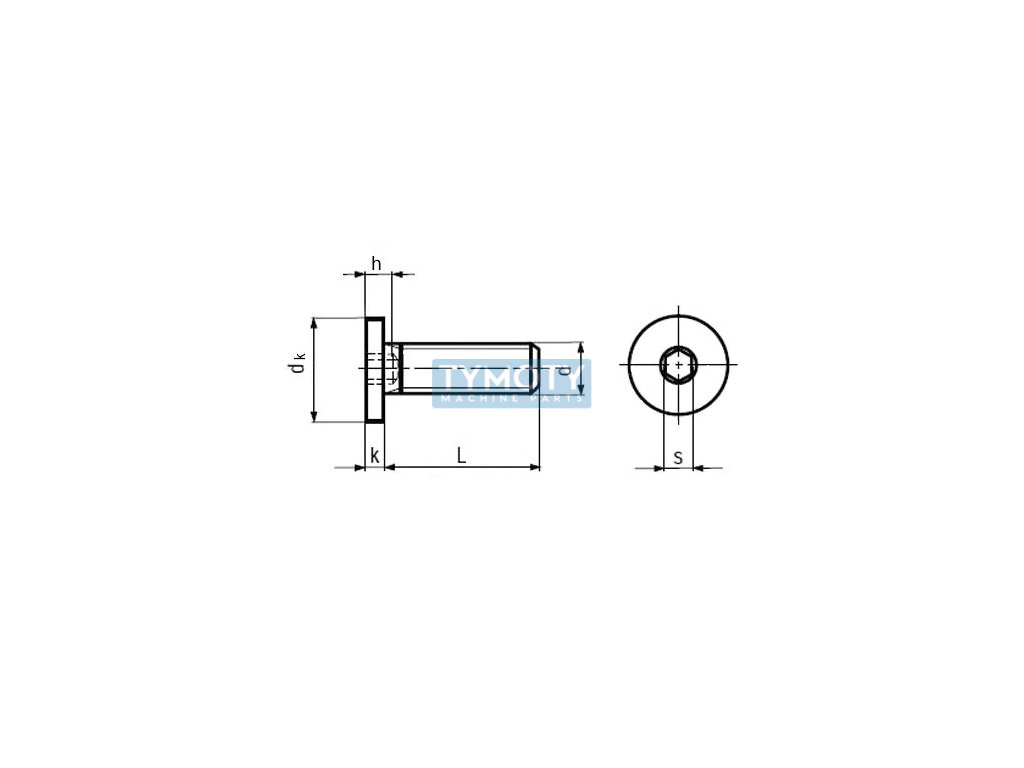

The extra low head cylindrical screw, designated as M10x16-10.9, is designed with an internal hexagon (hexagon), which allows it to be assembled and disassembled using an Allen key. This screw has a metric thread with a diameter of M10 and a pitch of 1.50 mm, which is a standard size for this type of thread. The total length of the screw is 16 mm, while the head height is 1.5 mm, which makes it an extra low head screw, ideal for applications where the height above the surface needs to be minimized.

The screw head has a cylindrical shape with a diameter of 16 mm and an internal hexagon width of 5 mm, which ensures sufficient strength when tightening. The screw is made of steel with a strength class of 10.9, which means that it has a high tensile strength and is suitable for demanding mechanical applications where high resistance to overload is required.

The surface treatment of the screw is blackened, which provides basic protection against corrosion and improves the aesthetic appearance. This treatment is suitable for applications where the screw is not exposed to extreme corrosive conditions. The screw is ideal for use in mechanical engineering, the automotive industry and other technical areas where a reliable and solid assembly with a minimum head profile is required.
