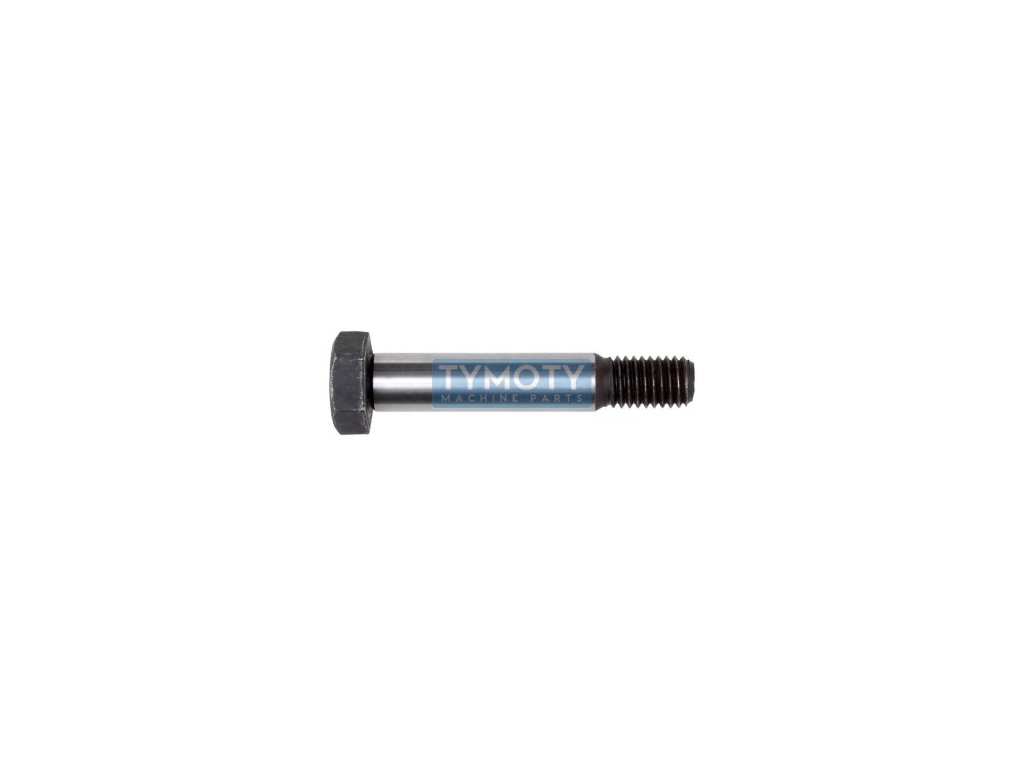

Screw, flush, short thread DIN 610 M12x40-8.8 without PU
Code: 819224
Product detailed description
The hexagon head short thread bolt is designed according to DIN 610 and ČSN 021112.50. This component is made of steel of strength class 8.8, which guarantees high strength and reliability in demanding applications. The bolt has a metric thread with a diameter of M12 and a pitch of 1.75 mm, while the total length of the bolt is 40 mm. The thread length is 15.5 mm, which allows for a firm fit in structural joints.The diameter of the bolt shank is 12 mm, while the diameter of the mating part is 13 mm, which ensures a precise fit in the holes. The hexagon head has a width of 18 mm and a height of 8 mm, which allows for easy handling using standard tools. The screw is supplied without surface treatment, which is suitable for applications where additional corrosion protection is not required.
This screw is ideal for use in mechanical assemblies where high precision and joint strength are required. Due to its design and material properties, it is suitable for applications in engineering where precision fitting and resistance to mechanical stress are important.
Additional parameters
| Category: | Fasteners > hexagon head screws > flush DIN 610 cr. thread > steel 8.8 without treatment |
|---|---|
| Weight: | 0.058 kg |
| EAN: | 4043952129340 |
| CSN standard: | 021112 |
| Diameter D (mm): | M12, 13 |
| DIN standard: | 610 |
| Fortress class: | 8,8 |
| Head shape: | hexagon |
| Height H (mm): | 8 |
| Material: | steel |
| Pitch: | 1,75 |
| Surface finish: | without modification |
| Thread length b (mm): | 15,5 |
| Thread type: | metric |
| Width B1 (mm): | 18 |
