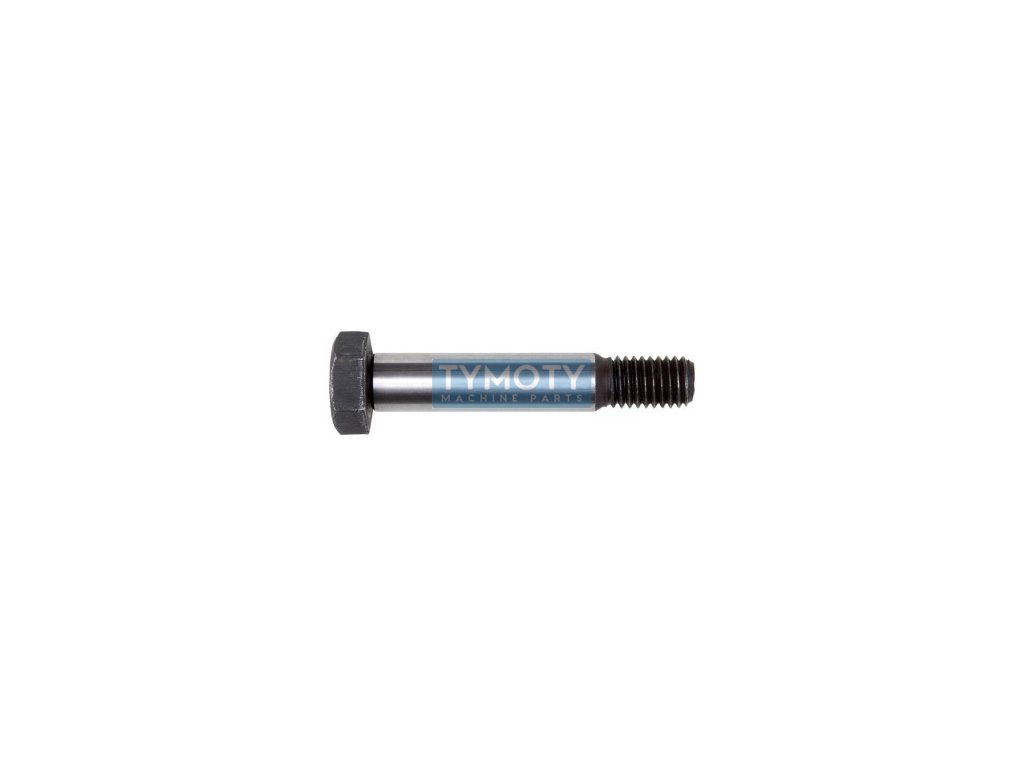

Screw, flush, short thread DIN 610 M10x80-8.8 without PU

Product detailed description

The hexagon head bolt with short thread according to DIN 610 and ČSN 021112.50 is designed for precise and solid connection of components, where high accuracy and joint strength are required. This bolt has a metric thread M10 with a length of 80 mm and a short thread section with a length of 15.5 mm. The diameter of the bolt is M10, while the outer diameter of the fitting part is 11 mm, which ensures a precise fit in the hole.

The hexagon head of the bolt has a width of 16 mm and a height of 7 mm, which allows the use of a standard wrench for assembly and disassembly. The bolt is made of steel of strength class 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa, making it suitable for applications with high mechanical loads.

The screw is supplied without surface treatment, which is suitable for applications where corrosion protection is not required or where additional surface treatment is planned according to specific project requirements. The screw is ideal for use in mechanical engineering where it is necessary to ensure precise and strong connection of parts, for example in machine structures, equipment and other technical applications.
