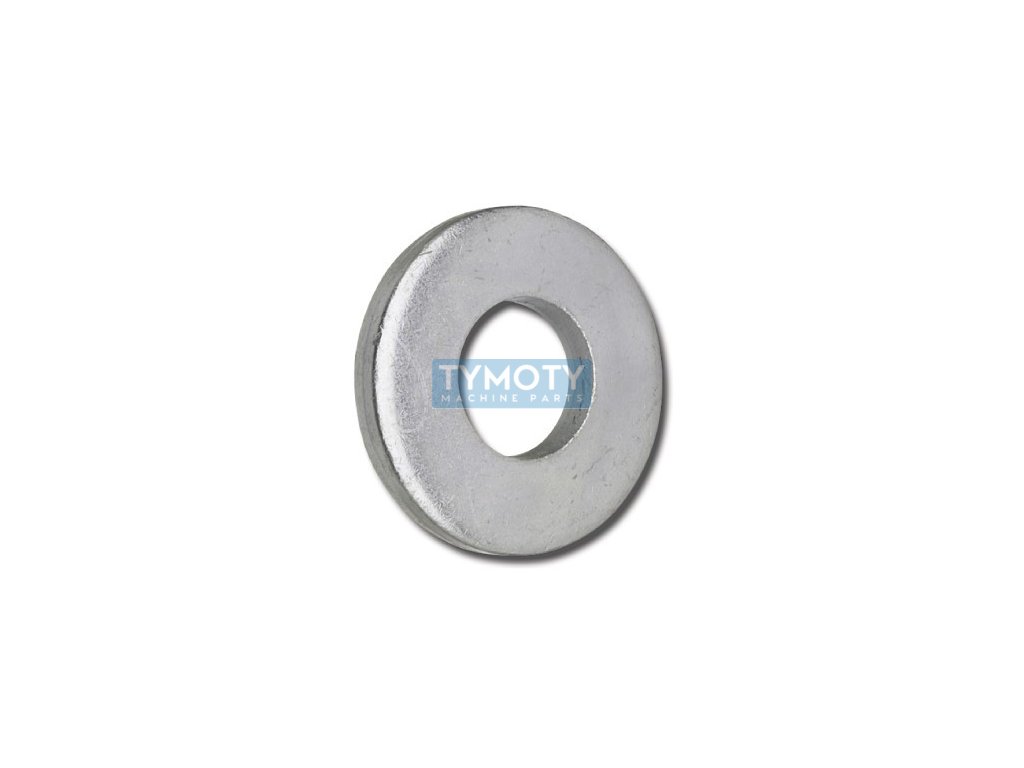

Round washer DIN 7349 M4 / 4.3 galvanized

Product detailed description

The round flat washer, thick, according to DIN 7349 and ČSN 021708, is intended for use with heavy tension pins and screws, where higher strength and stability of the connection is required. This washer has an inner diameter (d1) of 4.3 mm and an outer diameter (d2) of 12 mm, while its thickness (width s) is 1.6 mm. It is made of steel with a hardness of 200 HV, which guarantees high resistance to deformation and wear under mechanical stress.

The washer is surface-treated with white zinc plating, which provides protection against corrosion and increases its service life even in difficult conditions. Galvanizing is a process in which a layer of zinc is applied to the surface of steel, thereby increasing its resistance to oxidation and chemical influences.

This washer is ideal for applications where it is necessary to ensure even pressure distribution under the head of a screw or nut, thereby minimizing the risk of damage to the surface of the material into which the screw is fastened. Due to its dimensions and design features, it is suitable for industrial and construction applications where the emphasis is on reliability and long-term functionality of the joints.
