Rivet semi-round head DIN 660 6x20 copper

Product detailed description

Copper rivet with a hemispherical head, dimensions 6x20 mm, is manufactured according to the standards ČSN 022301, DIN 660 and ISO 1051. This connecting element is intended for a solid and permanent connection of two or more components, and is used mainly in applications where high corrosion resistance and good electrical conductivity are required, which are typical properties of copper.

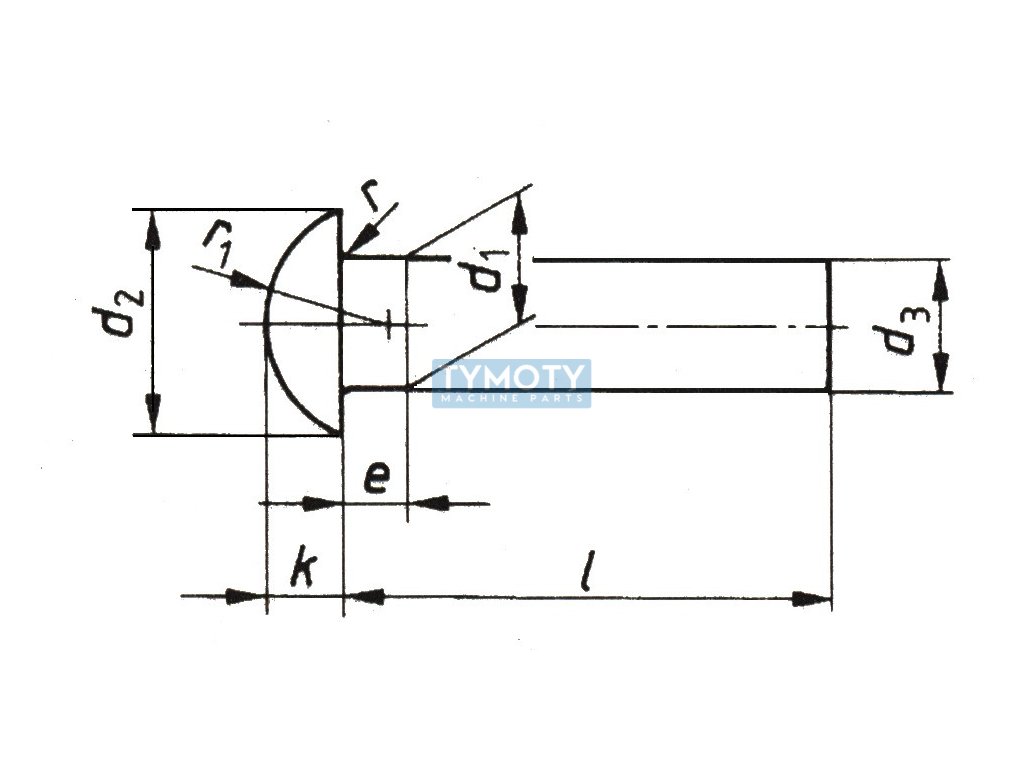

The rivet has a shank diameter of 6 mm and a length of 20 mm, while its head is hemispherical, which guarantees uniform pressure distribution during application. The hemispherical head is suitable for applications where it is necessary to minimize the risk of damage to the surface of the materials being joined.

The use of copper rivets is common in the electrical industry, where a reliable electrical connection is required, but also in other industries where high corrosion resistance is required. Copper rivets are also popular in decorative applications due to the aesthetic properties of copper.

This type of rivet is supplied in packages marked PU=S, which means it is packaged in standard units. When selecting and applying it, it is important to consider compatibility with the materials to be joined and to ensure the correct riveting tools are used to achieve optimum joint strength.
