Retaining ring for hole DIN 472 - 77 mm

Product detailed description

The DIN 472 77 mm diameter retaining ring is a structural component designed to axially secure bearings and shaft assemblies inside holes. This ring, also known as an internal circlip, is made of spring steel, which guarantees its high elasticity and resistance to mechanical stress.

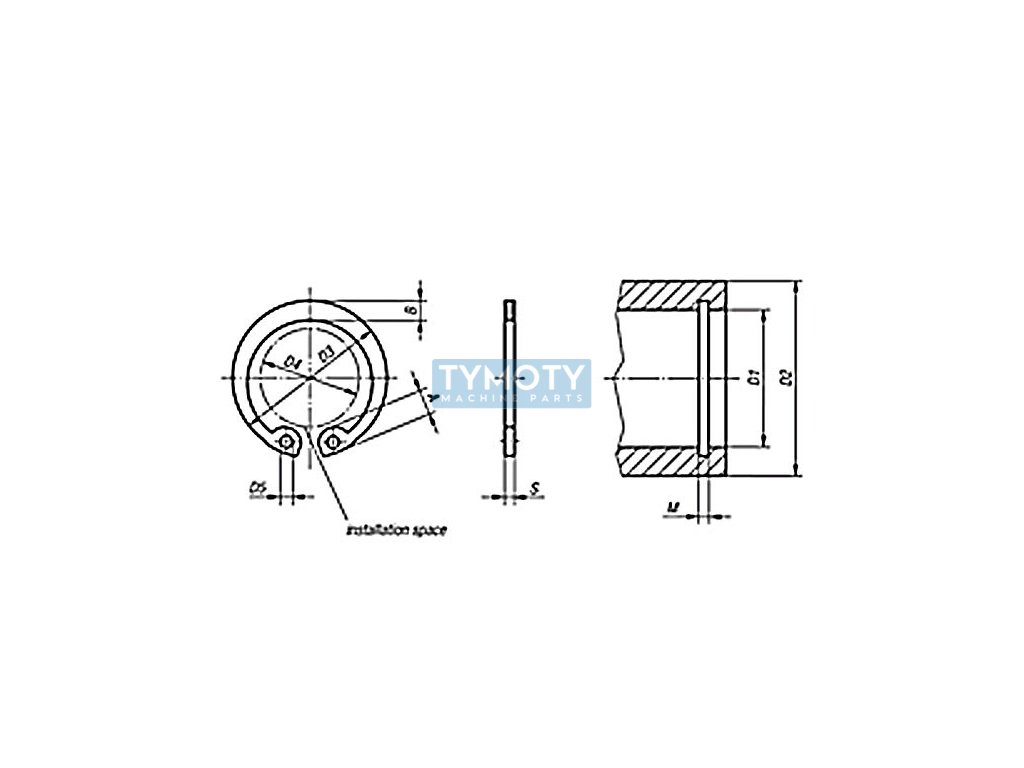

The ring has standardized dimensions of 77 x 2.5 mm, which means it is suitable for holes with a diameter of 77 mm and is 2.5 mm thick. This type of ring is designed to be installed in a groove inside the hole, ensuring a firm fit and preventing axial movement of components such as bearings or other rotating parts.

The use of uncoated spring steel gives the ring optimal mechanical properties such as high strength and resistance to fatigue failure. This material is ideal for applications where a reliable locking function is required under dynamic loads.

Circlips according to DIN 472 are commonly used in mechanical engineering and industrial applications where it is necessary to ensure reliable fixation of components in holes, while their installation is fast and efficient. This component is an integral part of the fastening material that ensures the safety and functionality of mechanical assemblies.
