Retaining ring for hole DIN 472 - 33 mm

Product detailed description

The DIN 472 33 mm diameter retaining ring is a specially designed component for securing parts inside a hole. This ring, often referred to as a circlip, is designed to axially secure bearings and shaft assemblies, ensuring the stability and safety of mechanical assemblies.

It is made of spring steel, which gives it high strength and resistance to dynamic loads. Spring steel is known for its ability to resist deformation and return to its original shape after the load is removed, ensuring reliable fastening of components. The ring has no surface treatment, which is common for applications where additional corrosion protection is not required or where the application environment is controlled.

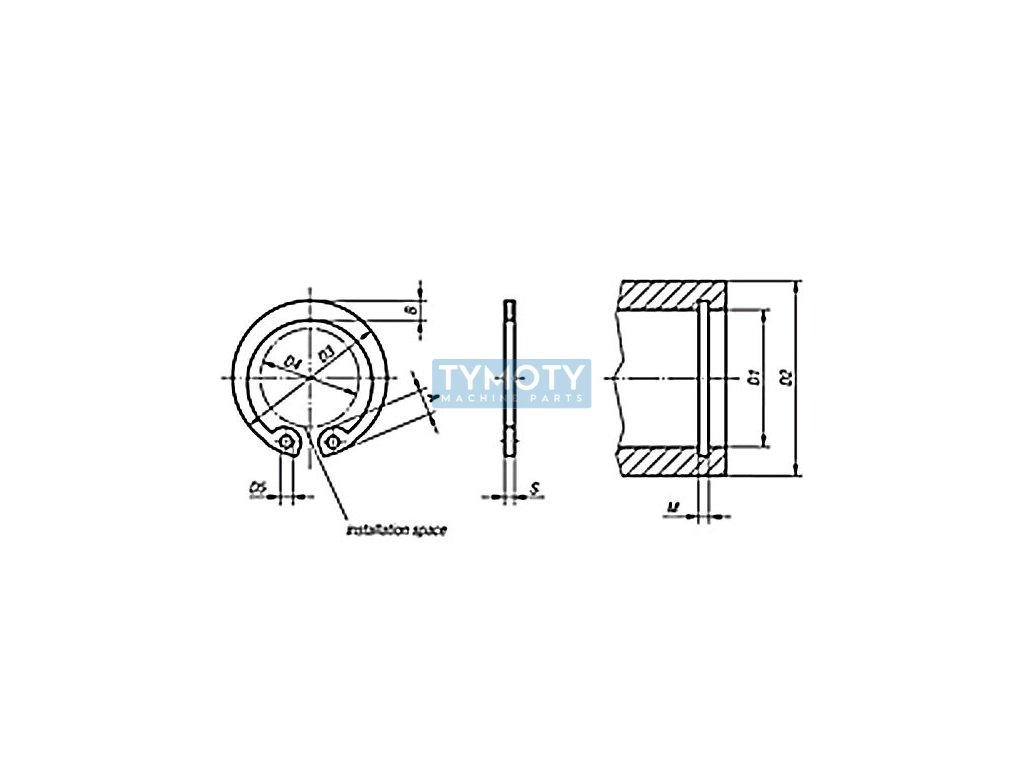

The DIN 472 standard defines dimensions and tolerances for these rings, which ensures their compatibility and interchangeability between different manufacturers and applications. The ring has a specified thickness of 1.2 mm, which is an important parameter for proper seating and function in the corresponding hole.

Retaining rings of this type are widely used in mechanical engineering and industry, where it is necessary to ensure a firm and reliable connection of parts without the possibility of their displacement or loosening. They are suitable for applications where it is necessary to secure components against axial movement, while their installation is simple and quick, which reduces the time required for assembly and maintenance.
