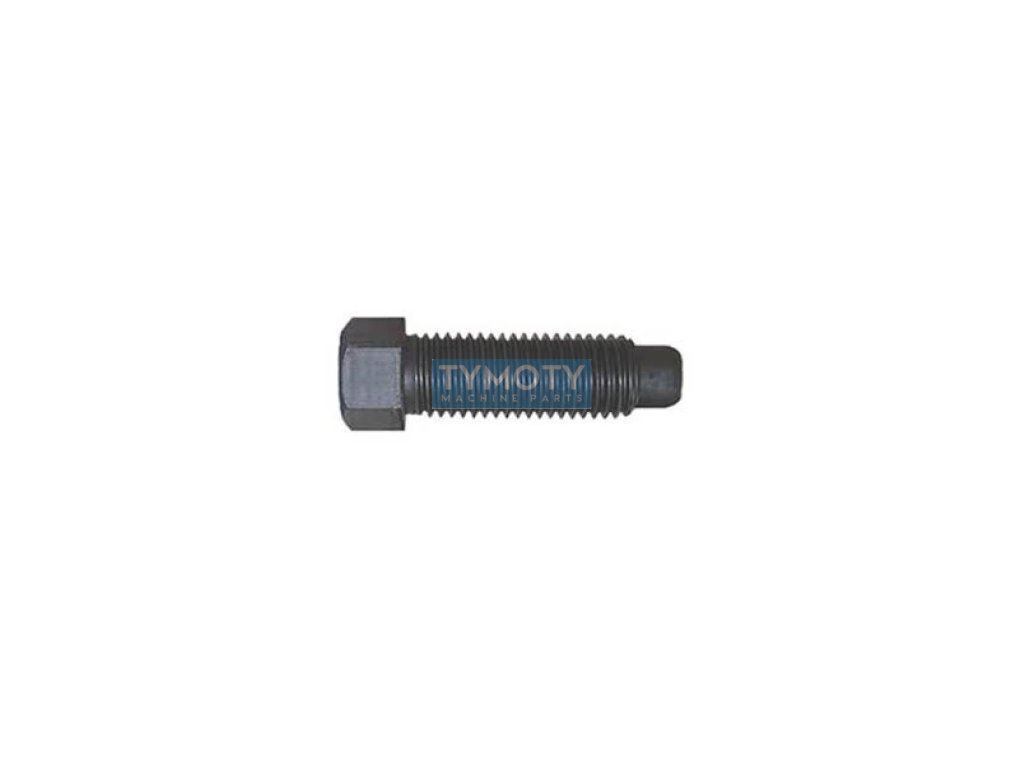

Push-out screw DIN 561B M6x20

Product detailed description

The DIN 561B push-in screw with pin is designed for applications requiring precise adjustment and fixation of components. This screw has a metric M6 thread with a length of 20 mm and a pitch of 1.00 mm, which allows it to be used in standardized holes and threads. It is made of steel with a strength class of 8.8, which corresponds to a yield strength of approximately 640 MPa and a tensile strength of around 800 MPa, which guarantees high resistance to mechanical stress.

The screw head has a small hexagonal shape, which allows easy handling with standard tools such as wrenches or sockets. The stud at the end of the screw is used for precise positioning or to push components out, which is useful in assembly or adjustment applications.

The screw is supplied without a surface treatment, which means it is suitable for applications where increased corrosion resistance is not required, or where an additional surface treatment will be applied according to specific project requirements. This screw is ideal for use in mechanical engineering, equipment assembly or construction where high precision and reliability of connections are required.
