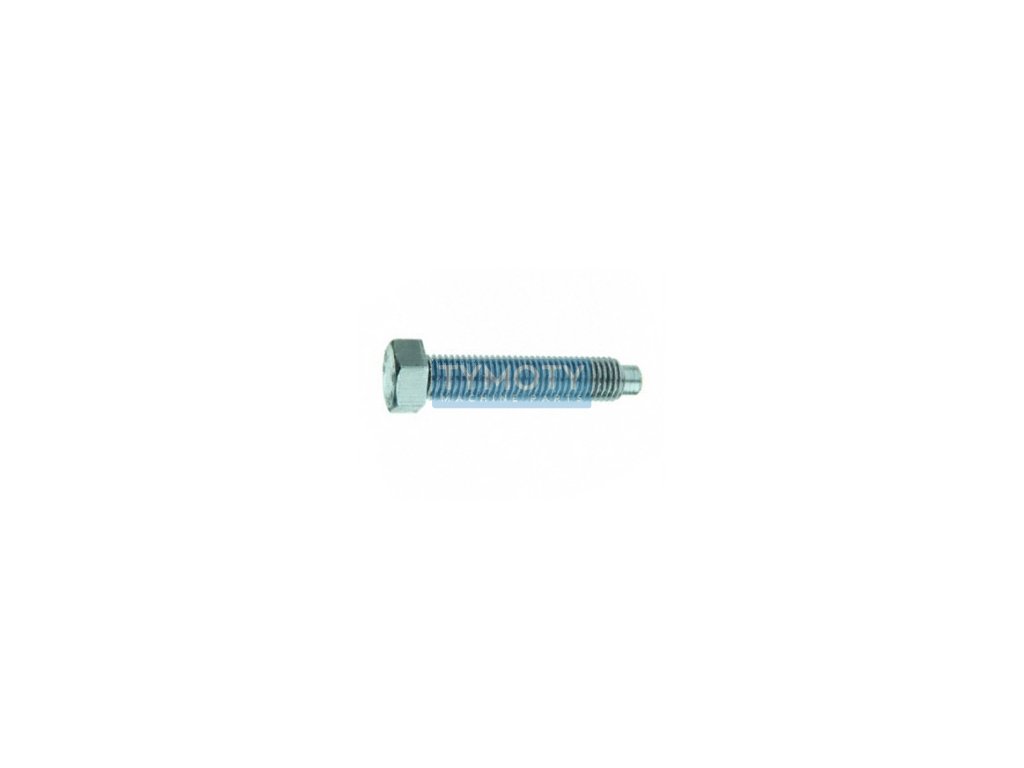

Push-off screw DIN 561B M16x70 22H(8.8) galvanized

Product detailed description

The DIN 561B M16x70 push-in screw is a specific type of fastener designed for precision mechanical applications where adjustment or fixation of components is required. This screw is manufactured according to DIN 561, form B, and is equipped with a small hexagonal head that allows easy tightening and loosening with a standard wrench.

The screw diameter is M16, which means that the outer diameter of the thread is 16 mm. The screw length is 70 mm, which includes the total length including the head and stud. The screw has a metric thread with a pitch of 2.00 mm, which is standard for this diameter, and ensures a solid and precise connection.

The screw material is steel with a strength class of 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. This strength class is suitable for applications where high mechanical resistance is required. The surface treatment of the screw is made of white zinc plating, which provides protection against corrosion and increases resistance to external influences.

The screw is equipped with a pin that allows precise adjustment of the position or pressure on the connected components. This structural element is often used in mechanical engineering and industrial applications where high precision and reliability of the connection are required. The screw is ideal for use in structures where frequent adjustment or fixation of parts in a certain position is required.
