Plow bolt DIN 608 M16x80-10.9

Product detailed description

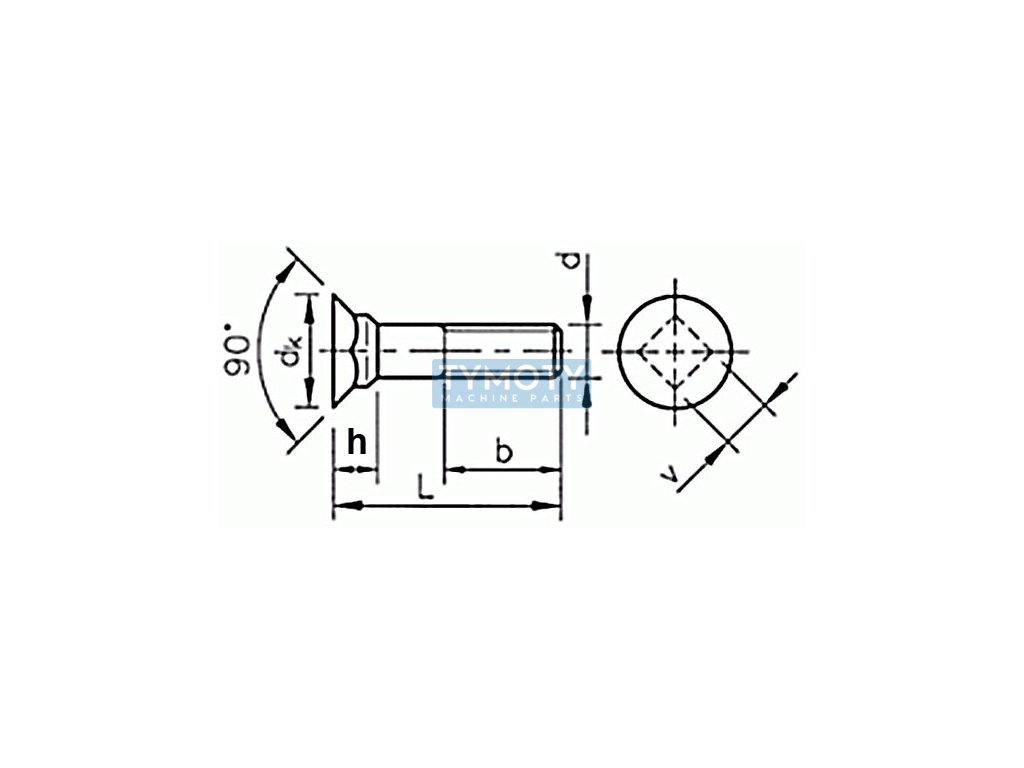

The DIN 608 plough bolt, with dimensions M16x80 and strength class 10.9, is designed for applications requiring high shear resistance and strong connections. This bolt is characterized by a rounded countersunk head, which allows smooth embedding into the material, minimizing the risk of surface damage. The square under the head ensures a firm hold in the material and prevents the bolt from turning during installation.

The bolt is made of high-strength steel, which is indicated by the strength class 10.9. This strength class means that the bolt has a minimum yield strength of 900 MPa and a minimum tensile strength of 1000 MPa, making it suitable for demanding mechanical applications where high demands are placed on the strength and reliability of the joints.

The use of this bolt is wide, especially in agriculture and engineering, where it is often used to attach plows and other heavy equipment that is exposed to high mechanical loads. The DIN 608 standard guarantees that the bolt meets all the necessary technical specifications and quality requirements for the given type of application. The bolt is supplied without surface treatment, which allows it to be further modified according to the needs of a specific application.
