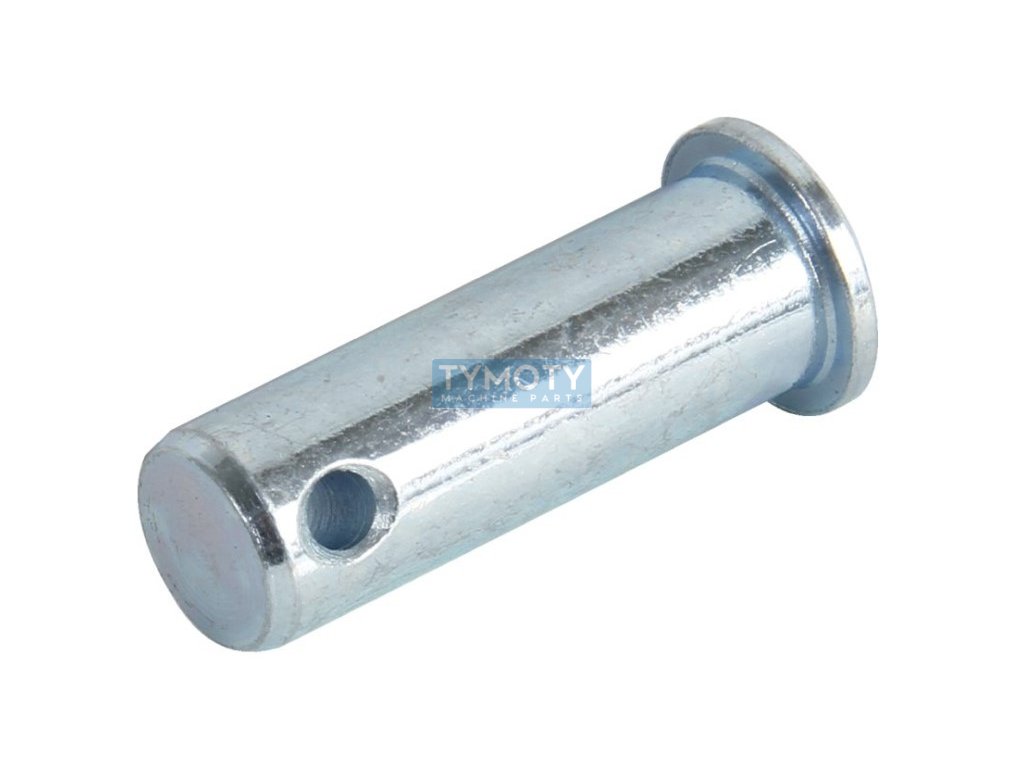

Pin with head DIN 1444B 8x25x21.5x2 galvanized
Code: 862822
Product detailed description
Pin with head with h11 tolerance, with hole for cotter pin, galvanized steel ISO 2341, ČSN 022211, DIN 1444B.Additional parameters
| Category: | Fasteners > pins > pins DIN 1444B |
|---|---|
| Weight: | 0.013 kg |
| EAN: | 4043952353790 |
| CSN standard: | 0222111 |

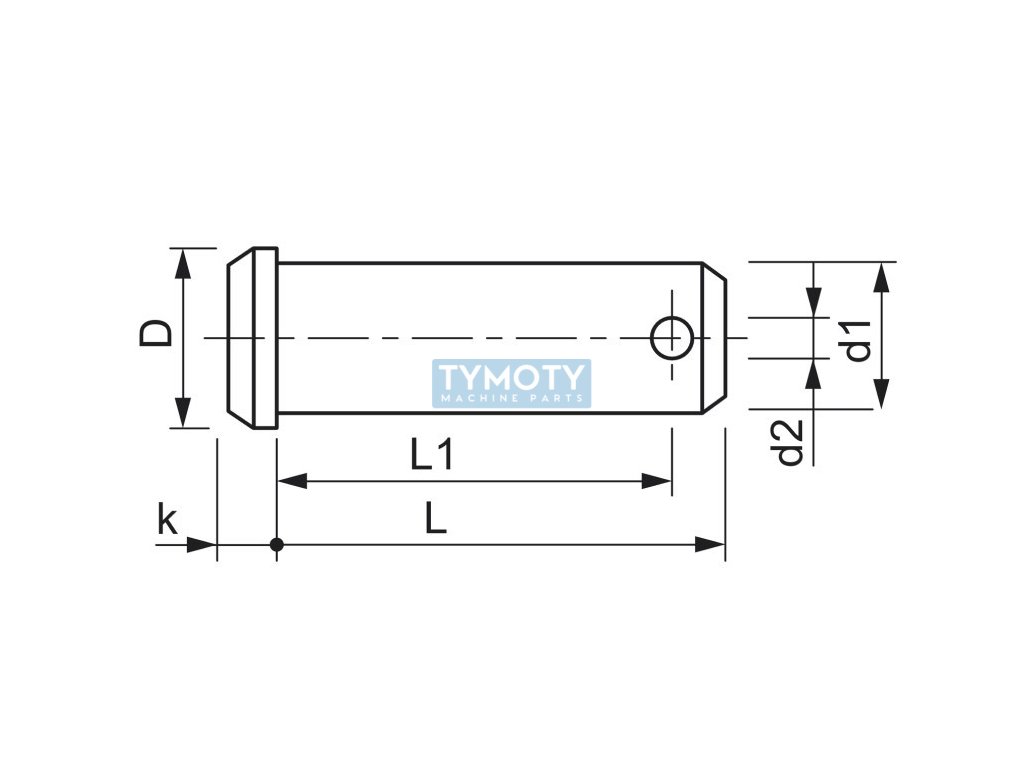

| Diameter D (mm): | 14 |
| Diameter d1 (mm): | 8 |
| Diameter D2 (mm): | 2 |
| DIN standard: | 1444 B |
| Height k (mm): | 3 |
| ISO standard: | 2341 |
| Length L (mm): | 25 |
| Length L1 (mm): | 21,5 |
| Material: | steel |
| Surface finish: | zinc white |
