Pin with head DIN 1444B 20x40x32x5 galvanized
Code: 862875
Product detailed description

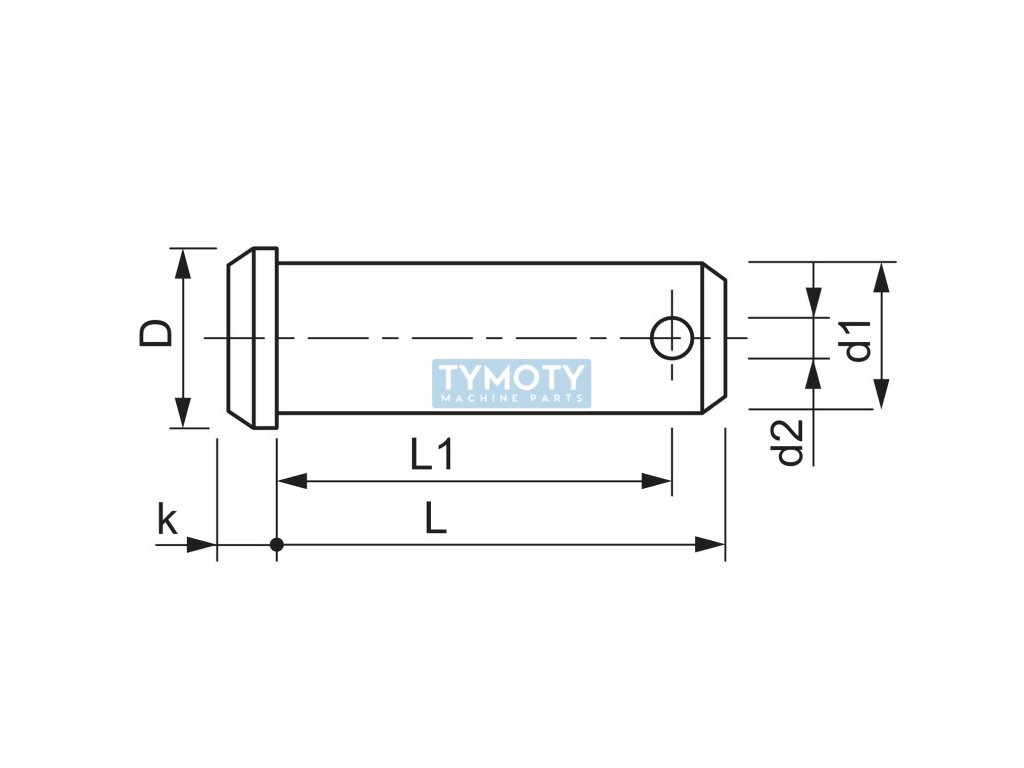

Pin with head with h11 tolerance, with hole for cotter pin, galvanized steel ISO 2341, ČSN 022211, DIN 1444B.Additional parameters
| Category: | Fasteners > pins > pins DIN 1444B |
|---|---|
| Weight: | 0.12 kg |
| EAN: | 4043952354049 |
| CSN standard: | 0222111 |
| Diameter D (mm): | 30 |
| Diameter d1 (mm): | 20 |
| Diameter D2 (mm): | 5 |
| DIN standard: | 1444 B |
| Height k (mm): | 5 |
| ISO standard: | 2341 |
| Length L (mm): | 40 |
| Length L1 (mm): | 32 |
| Material: | steel |
| Surface finish: | zinc white |
