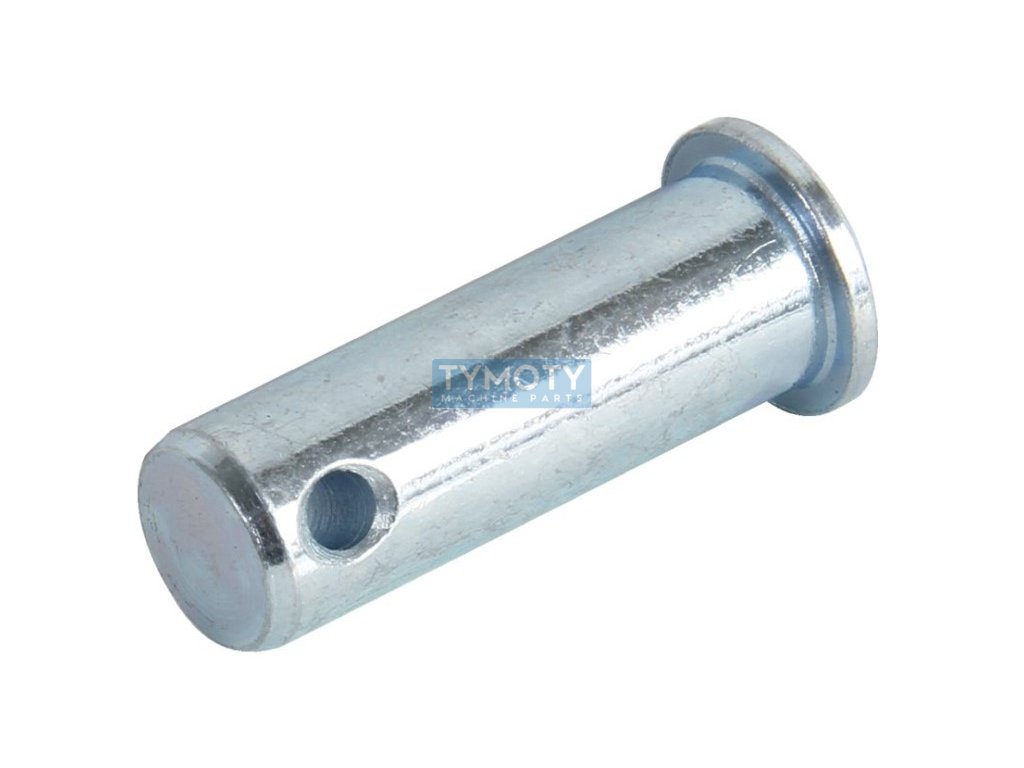

Pin with head DIN 1444B 16x40x34x4 galvanized

Product detailed description

The head pin according to DIN 1444B is a mechanical component intended for use in various engineering applications where a reliable connection with the possibility of quick disassembly is required. This particular pin has a diameter d1 of 16 mm and is made of steel that is surface-treated with white zinc plating, which increases its corrosion resistance and extends its service life in harsh operating conditions.

The pin is designed with a head that has a diameter D of 25 mm and a height k of 4.5 mm. The head serves to ensure a stable fit and prevent the pin from passing through the hole. The length of the pin L is 40 mm, while the effective length L1, which is intended for insertion into the joint, is 34 mm. At the end of the pin there is a hole with a diameter d2 of 4 mm, which is intended for insertion of a cotter pin. This cotter pin ensures that the pin remains in place even under vibration or other dynamic loads.

The pin is manufactured according to ISO 2341 and ČSN 022211, which guarantees its compatibility and reliability in international applications. The tolerance of the pin diameter is defined in the h11 field, which means that the pin diameter is precisely controlled and allows for precise seating in the hole. This type of pin is often used in connections where frequent disassembly and reassembly is required, such as articulated joints or mechanisms with moving parts.
