Pin conical internal thread DIN 7978 12x70

Product detailed description

The tapered pin with internal thread according to DIN 7978, ISO 8736 and ČSN 022155 is a precisely ground connecting component designed for precise centering of parts with the possibility of their disassembly. This pin is made of free-cutting steel without surface treatment, which guarantees its high accuracy and reliability in applications where strength and accuracy of the connection are required.

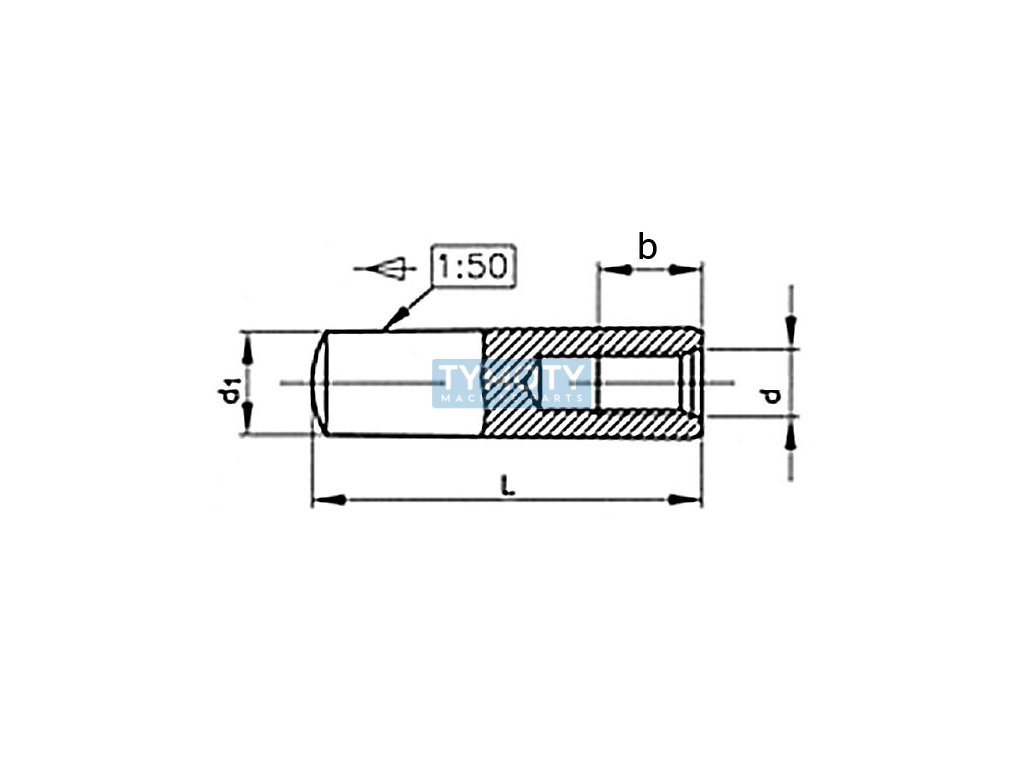

The pin has a conical shape with a taper ratio of 1:50, which means that for every 50 units of length, the diameter decreases by 1 unit. This shape allows for a solid and stable connection, while the internal thread allows for easy disassembly using a guide screw. The dimensions of the pin are 12 mm in diameter and 70 mm in length, which makes it suitable for various applications where precise centering and dismountability of the connection are required.

The use of this pin is ideal in mechanical engineering and industrial applications where it is necessary to ensure a precise and strong connection of parts that can be repeatedly disassembled and assembled without loss of accuracy. Thanks to its design and material properties, this pin is suitable for applications with high demands on accuracy and reliability.
