Pin conical internal thread DIN 7978 10x120

Product detailed description

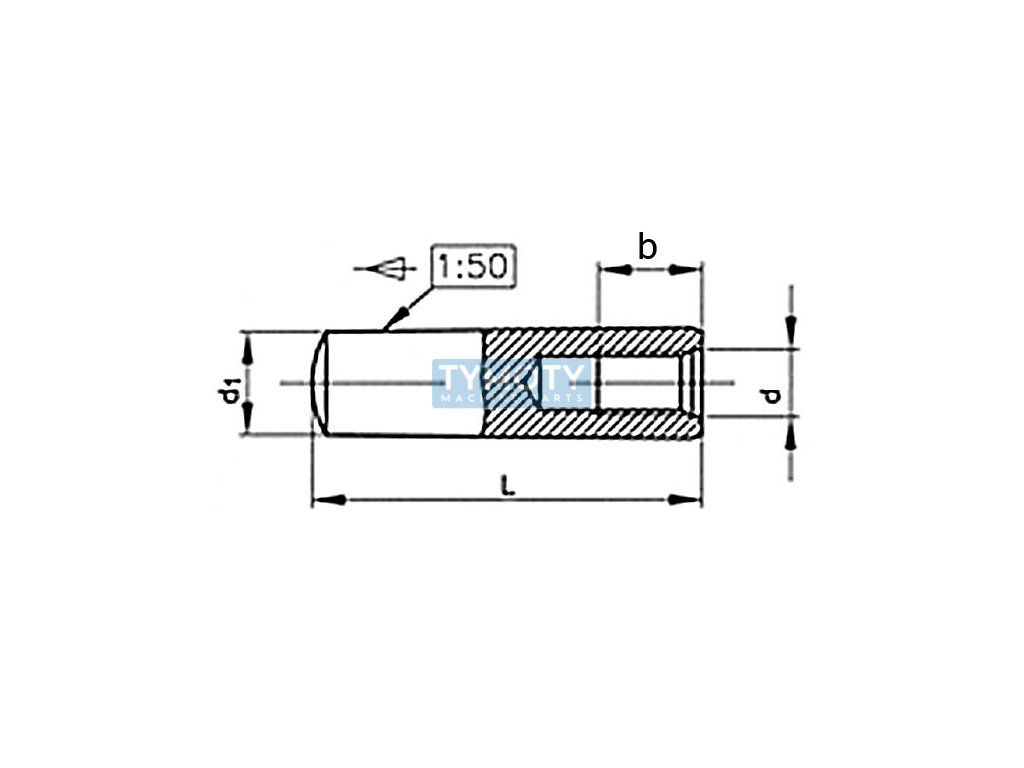

The tapered pin with internal thread according to DIN 7978, ISO 8736 and ČSN 022155 is a precisely ground connecting component made of free-cutting steel without surface treatment. This pin has a conical shape with a taper ratio of 1:50, which allows for precise centering of parts. Its dimensions are 10 mm in diameter and 120 mm in length. The internal thread allows for easy disassembly using a guide screw, which is advantageous for applications where frequent disassembly and reassembly of joints is required.

The pin is designed for fixed but detachable joints where accuracy and reliability are important. It is mainly used in mechanical engineering and industry, where it is necessary to ensure precise positioning and centering of parts. Due to its design and material properties, it is suitable for applications with high demands on mechanical strength and wear resistance.

The free-cutting steel used to manufacture the pin provides good mechanical properties and is suitable for applications where additional surface treatment is not required. This type of pin is ideal for use in environments where minimal maintenance and high reliability of connections are required.
