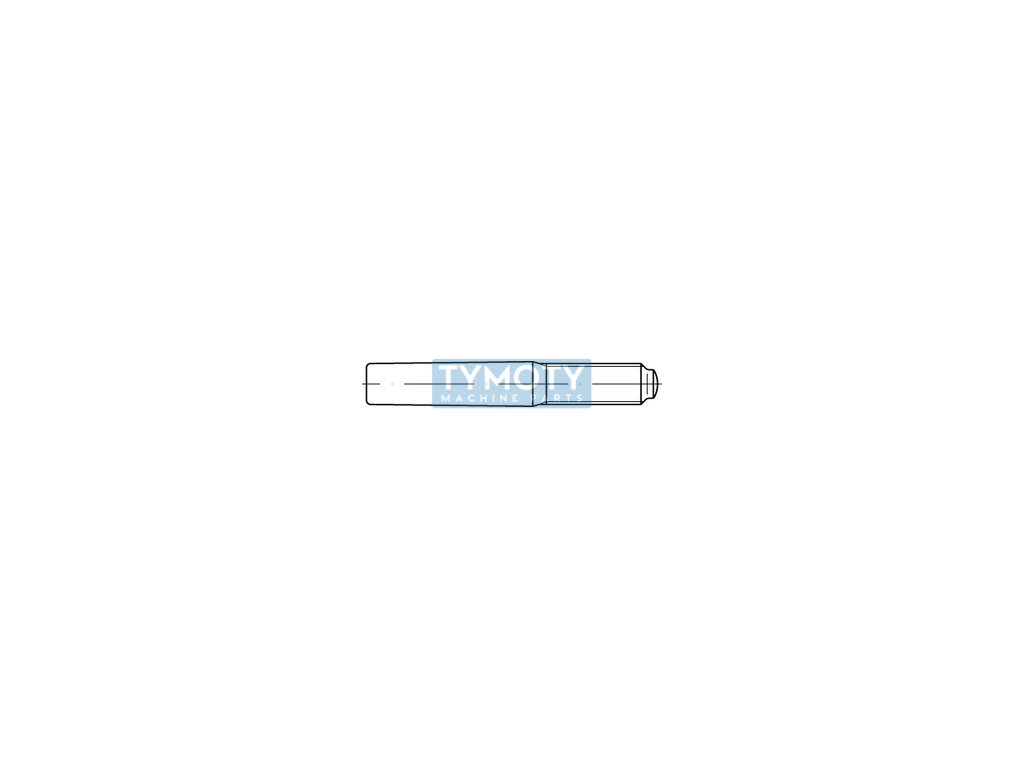

Pin conical external thread DIN 7977 12x120

Product detailed description

The tapered pin with external thread according to DIN 7977, ISO 8738 and ČSN 022154 is designed for precise centering of parts, while allowing easy disassembly thanks to the threaded part. This particular model has dimensions of 12 mm in diameter and 120 mm in length. It is structurally designed with a conical shape that has a taper ratio of 1:50, which means that for every 50 units of length, the diameter decreases by 1 unit.

The pin is made of free-cutting steel that is not surface-treated, which means that it is suitable for applications where additional corrosion protection is not required. Free-cutting steel is known for its good machinability and is often used in cases where high precision and repeatability of production are required.

The external thread at the end of the pin allows for easy attachment and removal, which is advantageous in applications where frequent disassembly and reassembly of components is required. This type of pin is ideal for use in mechanical engineering and precision mechanics, where it is necessary to ensure a strong and accurate connection of parts.
