Pin conical DIN 1B 4x20

Product detailed description

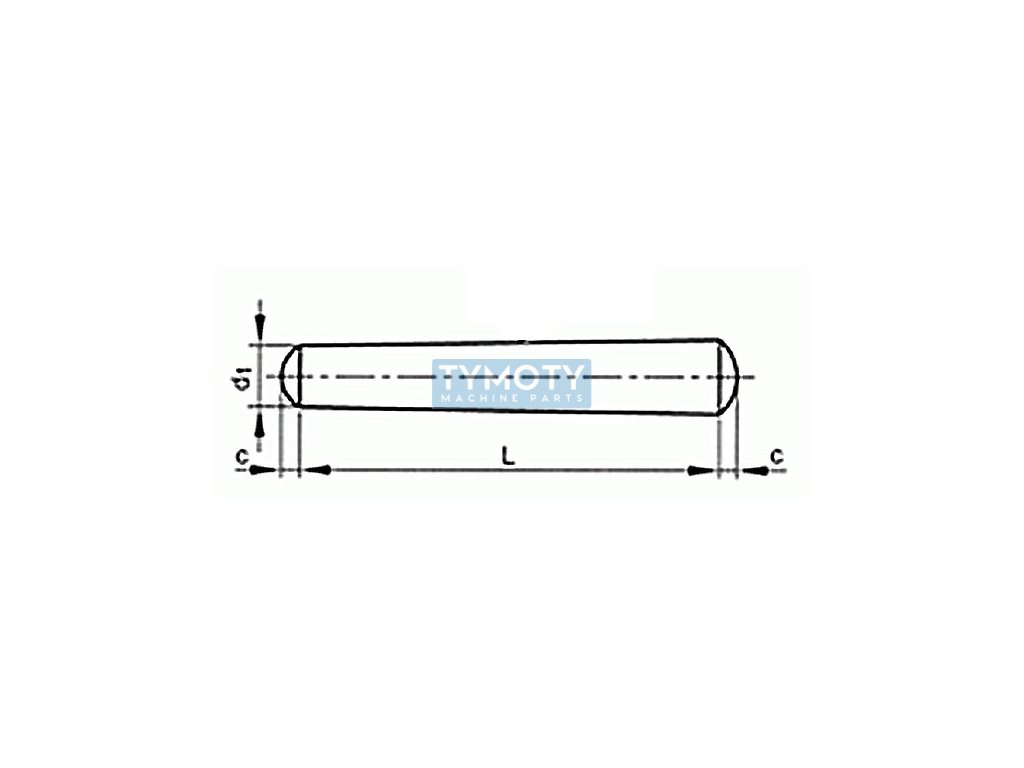

The DIN 1B 4x20 tapered pin is a precision turning fastener that meets the DIN 1B, ISO 2339 B and ČSN 022153 standards. This component is designed for use in mechanical assemblies where it is necessary to provide fixed and detachable connections with high precision guidance. The pin has a cylindrical head and its ends are rounded, which facilitates assembly and disassembly in applications where frequent maintenance or replacement of parts is required.

The dimensions of the pin are 4 mm in diameter and 20 mm in length, which makes it suitable for a wide range of applications in mechanical engineering. The material is free-cutting steel, which provides good machinability and sufficient strength for common mechanical loads. The pin is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection is not required, or where further surface treatment is planned according to specific project requirements.

The conical shape of the pin ensures that self-centering occurs during assembly, which increases the accuracy and reliability of the connection. This type of pin is ideal for applications where it is necessary to ensure precise positioning of components, such as assemblies in precision mechanisms or tooling applications.
