Phillips self-tapping screw DIN 7983C 2.9x16 galvanized

Product detailed description

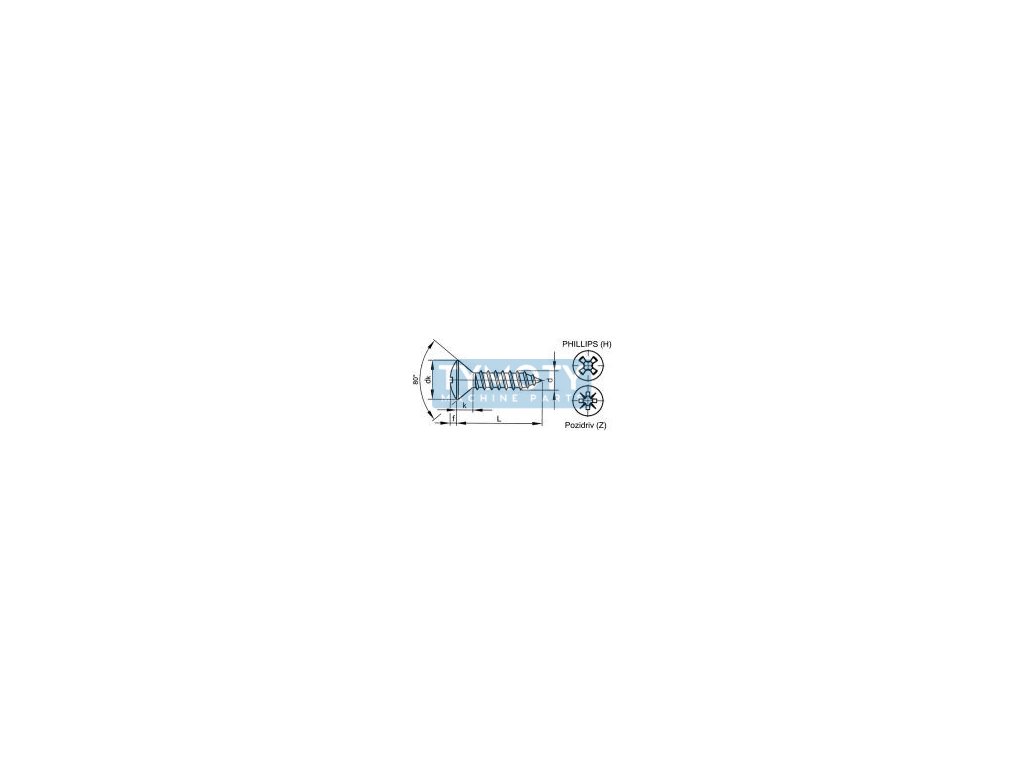

The self-tapping sheet metal screw with a pan head and Phillips cross recess according to DIN 7983C, ČSN 021239 and ISO 7051 is designed for fixed connections without the need for pre-drilling. This type of screw is suitable for applications where a clean and aesthetic appearance of the connection is required. The dimensions of the screw are 2.9 mm in diameter and 16 mm in length, which makes it ideal for thinner materials such as sheet metal.

The screw is made of steel and surface-treated with electroplating zinc, which increases its resistance to corrosion. The zinc plating is passivated, which means that the surface treatment provides additional protection against oxidation and extends the life of the component in harsh conditions.

The pan head of the screw is designed to sink into the material when applied, resulting in a smooth surface without protruding parts. The Phillips cross recess allows for efficient torque transfer during assembly, which reduces the risk of damage to the screw head and improves overall joint reliability.

This screw is ideal for use in metal structures where a strong and reliable joint is required without pre-drilling. It is suitable for a variety of industrial applications, including furniture, electronics and automotive. The screw is supplied in a PU=S package, indicating that it is available in a standard package for easy handling and storage.
