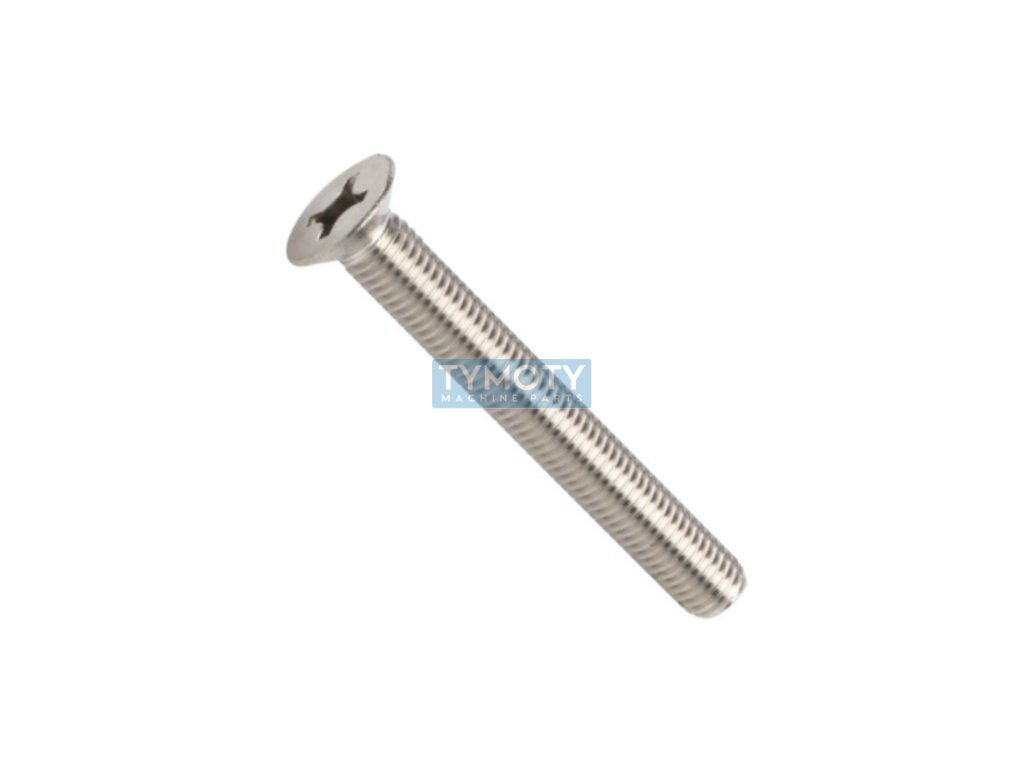

Phillips countersunk screw DIN 965 M8x80 stainless steel A2

Product detailed description

The Phillips countersunk head screw according to DIN 965, ČSN 021152 and ISO 7046 is designed for applications requiring aesthetic and precise joints with a flat surface without protrusions. This type of screw has a metric thread with a diameter of M8 and a length of 80 mm, with a thread pitch of 1.25 mm. The screw is made of A2 grade stainless steel, which provides high corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure.

The screw head is countersunk, which means that after installation it is flush with the surface of the material into which it is fastened. The head diameter (dk) is 14.5 mm and the head height (k) is 4 mm. The H4 Phillips cross recess allows for efficient torque transfer during assembly and disassembly, while reducing the risk of groove damage.

The screw has no surface treatment, which is typical of stainless steel materials, as their natural resistance to corrosion eliminates the need for additional protective layers. This component is suitable for use in various industries, including mechanical engineering, construction and furniture production, where high joint strength and aesthetic appearance are required.
