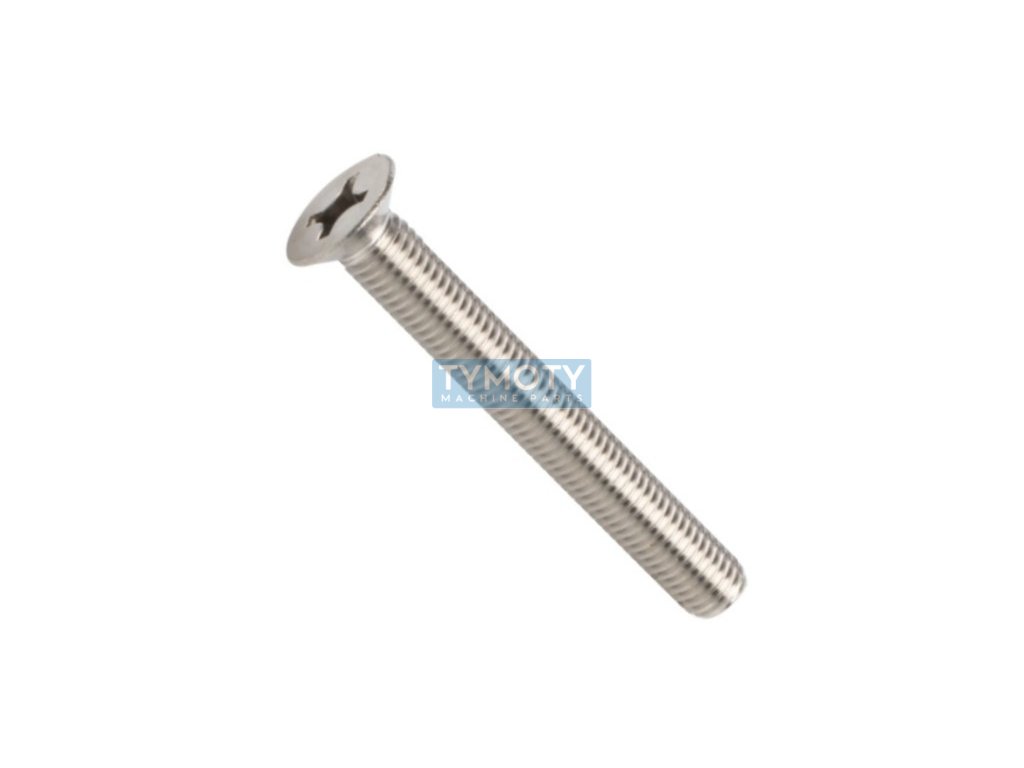

Phillips countersunk screw DIN 965 M5x80 stainless steel A2

Product detailed description

The Phillips countersunk head screw, manufactured according to DIN 965, ČSN 021152 and ISO 7046, is designed for applications where an aesthetic and precise joint with a flat surface without protrusions is required. This screw has a metric M5 thread with a length of 80 mm and a thread pitch of 0.80 mm. The screw head is countersunk with a diameter of 9.2 mm and a height of 2.5 mm, which allows it to be completely embedded in the material, achieving a smooth surface.

The Phillips-type slot, designated as H2, allows for efficient torque transmission during assembly and disassembly, while reducing the risk of damage to the slot. The screw material is A2 grade stainless steel, which provides high corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure. The screw has no surface treatment, which preserves the natural properties of stainless steel.

This screw is suitable for a wide range of applications in engineering, construction and industrial assembly, where it is necessary to ensure a reliable and aesthetic connection of components. It is ideal for use in situations where not only functionality, but also the appearance of the joint is important.
