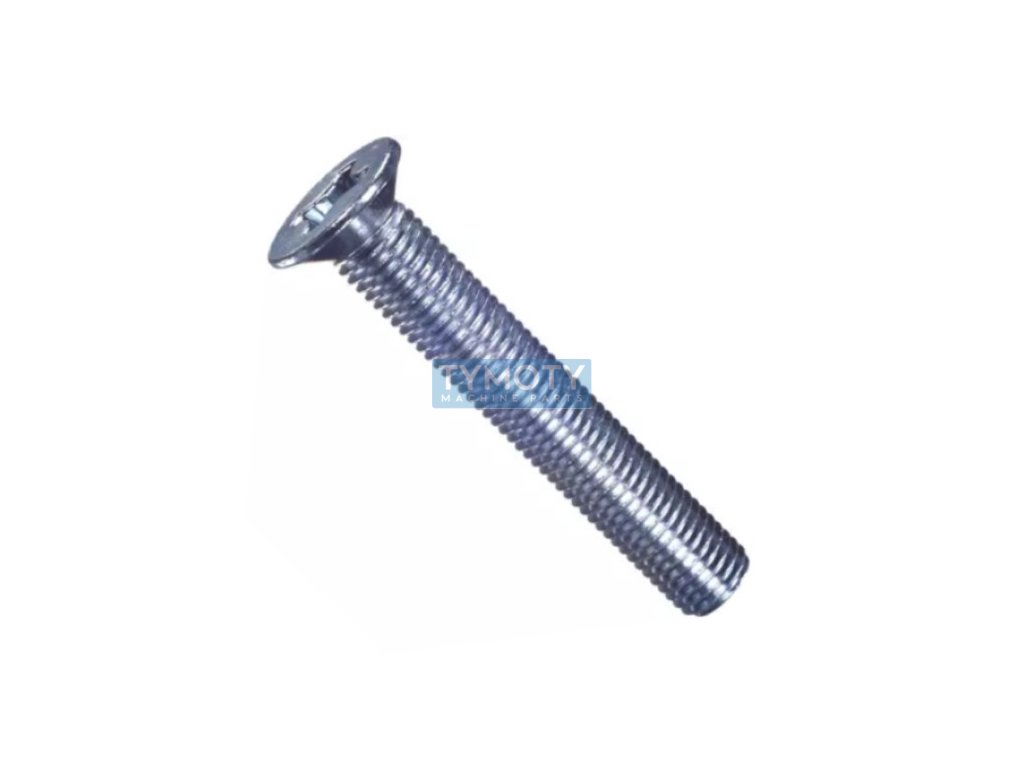

Phillips countersunk screw DIN 965 M5x40 galvanized

Product detailed description

The Phillips countersunk head screw according to DIN 965, ČSN 021152 and ISO 7046 is intended for applications where aesthetic appearance and precise joints with a flat surface without protrusions are required. This screw has a metric thread with a diameter of M5 and a length of 40 mm, with a thread pitch of 0.80 mm.

The screw head is countersunk, which means that after installation it is flush with the surface of the material into which it is fastened, thus achieving a smooth surface. The head diameter (dk) is 9.2 mm and the head height (k) is 2.5 mm. The groove is of the Phillips type, specifically size H2, which ensures effective torque transmission during assembly and disassembly using a cross-head screwdriver.

The screw material is steel with a strength class of 4.8, which indicates that it has a yield strength of 320 MPa and a tensile strength of 400 MPa. The surface treatment is white zinc plating, which provides protection against corrosion and increases resistance to external influences.

This screw is ideal for use in various industrial sectors where it is necessary to ensure a strong and reliable connection with an emphasis on aesthetics and functionality. It is suitable for applications in mechanical engineering, the furniture industry and wherever it is necessary to achieve a flat surface without protrusions.
