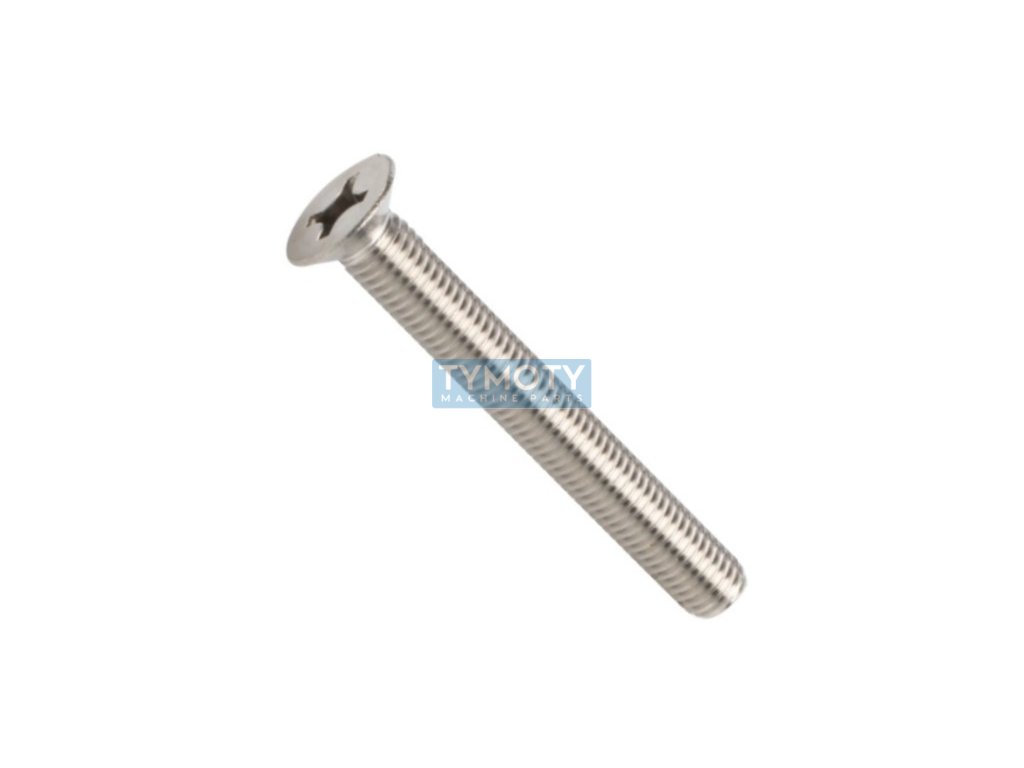

Phillips countersunk screw DIN 965 M5x14 stainless steel A2

Product detailed description

The Phillips countersunk head screw, manufactured according to DIN 965, ČSN 021152 and ISO 7046, is designed for applications where it is necessary to achieve an aesthetic and precise joint with a flat surface without protrusions. This screw has a metric thread with a diameter of M5 and a length of 14 mm, with a thread pitch of 0.80 mm. The head of the screw is countersunk, which allows it to be completely embedded in the material, thus achieving a smooth surface.

The Phillips cross-groove allows for efficient torque transmission during assembly and disassembly, with the groove specified as H2. The height of the screw head is 2.5 mm and the head diameter is 9.2 mm, which ensures sufficient contact area for a stable connection.

The screw material is A2 grade stainless steel, which provides high corrosion resistance, which is ideal for use in environments with higher humidity or outdoors. The screw has no additional surface treatment, which increases its resistance to chemical influences and mechanical wear.

This screw is suitable for use in various industrial sectors where it is necessary to ensure strong and aesthetically pleasing connections, such as mechanical engineering, furniture production or construction. Its design features allow reliable use in applications where the emphasis is on precision and quality of the connection.
