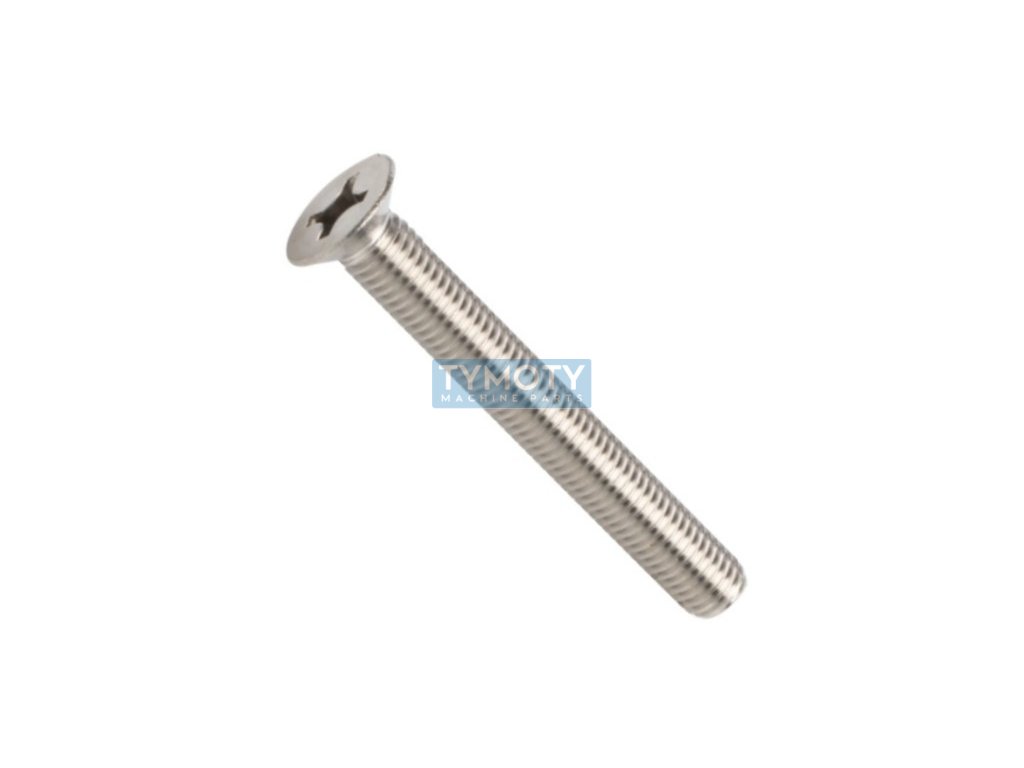

Phillips countersunk screw DIN 965 M3x5 stainless steel A2

Product detailed description

The Phillips countersunk head screw according to DIN 965, ČSN 021152 and ISO 7046 is intended for applications where an aesthetic and precise connection with a flat surface without protrusions is required. This screw has a metric thread with a diameter of M3 and a length of 5 mm, with a thread pitch of 0.50 mm.

The screw head is countersunk, which means that after assembly it is flush with the surface of the material into which it is fastened. The head height is 1.65 mm and the head diameter (dk) is 5.6 mm. The groove in the head is of the Phillips cross type, specifically size H1, which allows for effective torque transmission using the corresponding tool.

The screw is made of A2 grade stainless steel, which provides good corrosion resistance and is suitable for use in environments with higher humidity or slightly aggressive chemicals. The surface treatment is not applied, which preserves the natural properties of stainless steel.

This screw is ideal for use in industrial and construction applications where aesthetics and reliability of connections are important. Thanks to its properties, it is suitable for both interior and exterior installation work, while providing a durable and secure connection.
