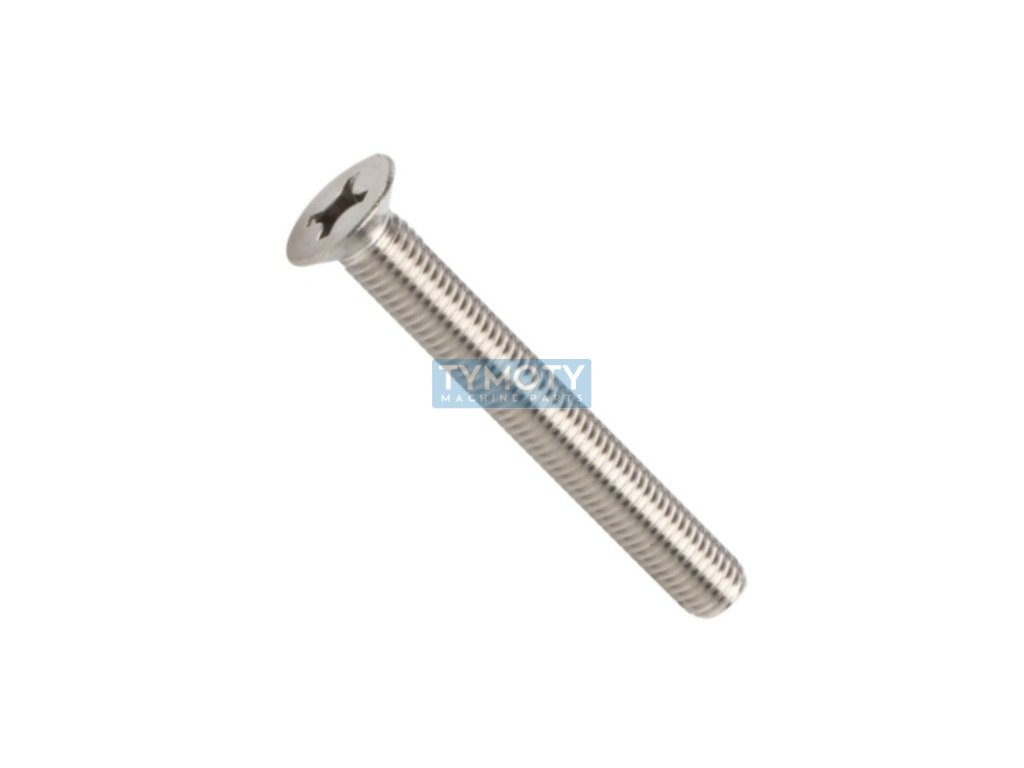

Phillips countersunk screw DIN 965 M2x10 stainless steel A2

Product detailed description

The Phillips countersunk head screw according to DIN 965, ČSN 021152 and ISO 7046 is intended for use in situations where it is necessary to achieve an aesthetic and precise joint with a flat surface without protrusions. This screw has a metric thread with a diameter of M2 and a length of 10 mm, with a thread pitch of 0.40 mm.

The screw head is countersunk, which means that after installation it is flush with the surface of the material into which it is fastened. The head diameter (dk) is 3.8 mm and the head height (k) is 1.2 mm. The slot is of the Phillips type, marked H1, which allows for effective torque transmission during assembly using a suitable screwdriver.

The material from which the screw is made is stainless steel grade A2. This grade of steel is known for its resistance to corrosion, making it suitable for use in environments with higher humidity or outdoors. The screw has no additional surface treatment, which is common for stainless steel materials, which already provide sufficient protection against corrosion.

This screw is ideal for applications where not only functionality but also aesthetic appearance is important, such as electronic devices, furniture, or other precision mechanical assemblies.
