Permaglide PAW 16 P14 axial sliding ring, steel-PTFE/ZnS (lead-free)

Product detailed description

Permaglide PAW 16 P14 is an axial sliding ring designed for applications requiring high reliability and maintenance-free operation. This component is made of lead-free steel-PTFE/ZnS composite, which guarantees its ecological safety and compliance with modern environmental standards.

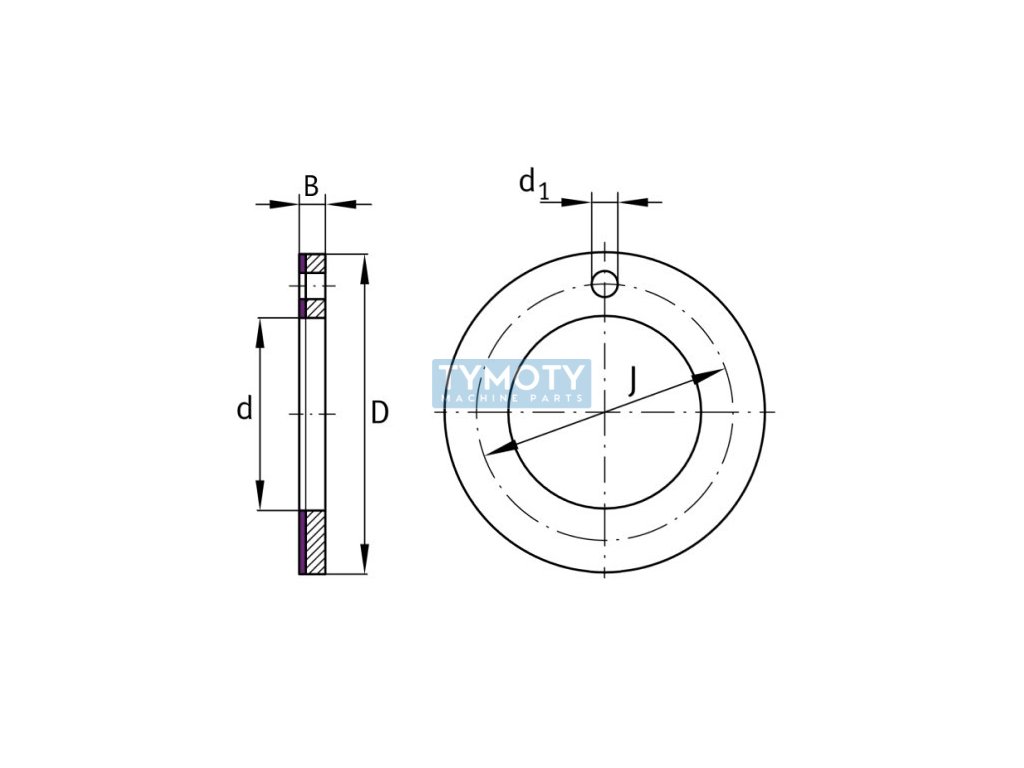

The ring has an inner diameter of 16 mm, an outer diameter of 30 mm and a width of 1.5 mm, which makes it suitable for use in various mechanical assemblies where axial guidance and minimal friction are required. The steel-PTFE/ZnS material combination provides excellent sliding properties, allowing operation without the need for additional lubrication. This aspect is particularly advantageous in dry-running applications where maintenance is kept to a minimum.

The ring is capable of operating in extreme temperature conditions, ranging from -200°C to +280°C, making it suitable for use in a wide range of industries, including the automotive, aerospace and energy sectors. Weighing only 0.006 kg, this component is lightweight, helping to reduce the overall weight of the assembly in which it is used.

Permaglide PAW 16 P14 is the ideal choice for applications where long-term reliability and efficiency are required without the need for frequent maintenance, while its lead-free formulation ensures safety and environmental friendliness.
