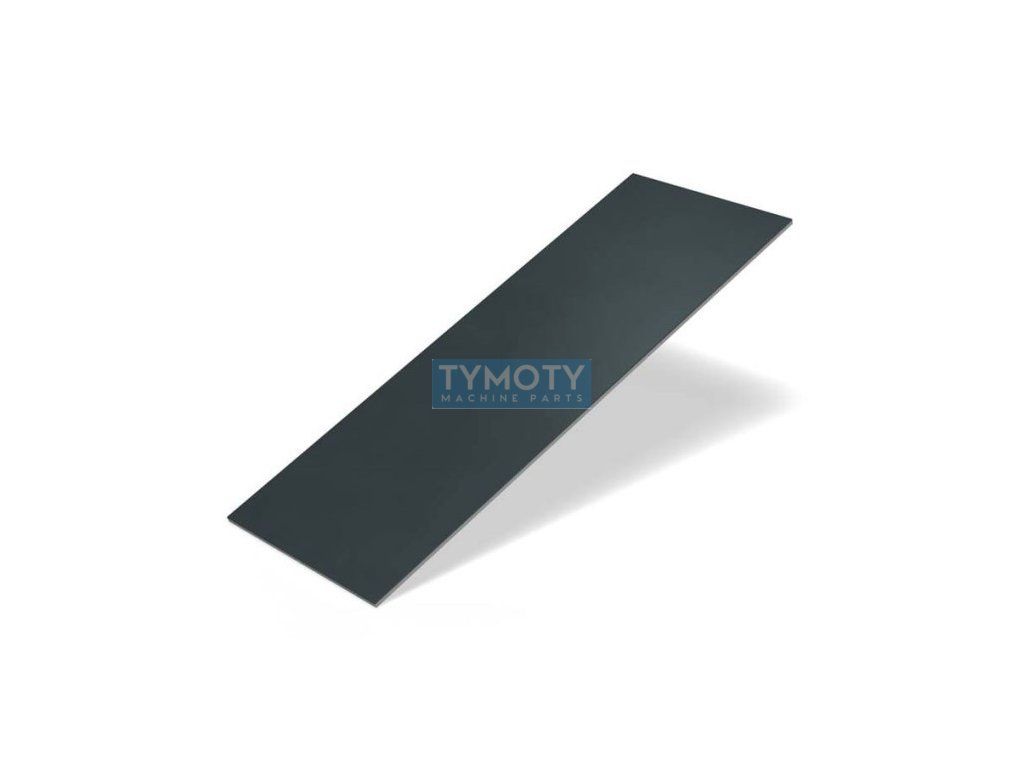

Permaglide PAS 25250 P10 sliding belt, steel-PTFE
Code: 648678
Product detailed description
The P10 material is designed for maintenance-free dry-running applications, but can also be used in systems with liquid lubrication.It consists of a sliding layer made of lead-based PTFE composite, which is applied to a middle layer of tin bronze. This dissipates heat well and ensures a strong bond with the supporting steel layer, which is electrolytically tinned for corrosion protection.
Characteristics of P10:
- low wear
- good chemical resistance
- low friction value
- high load capacity
Preferred areas of application:
- maintenance-free operation under dry-running conditions
- rotary or oscillating movements
- up to a speed of 2 m/s
- linear movements
- temperature range -200 °C to 280 °C
Additional parameters
| Category: | Bearings > slippery > belts > steel - PTFE/Pb composite |
|---|---|
| Weight: | 2.46 kg |
| EAN: | 4028977661914 |

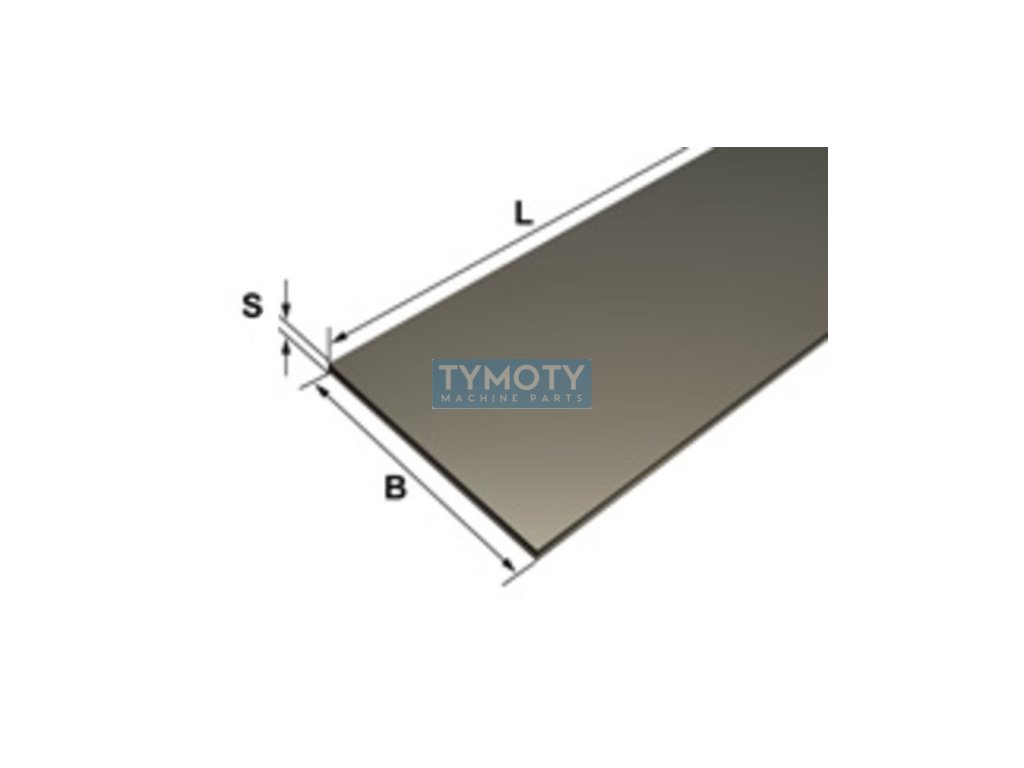

| Length L (mm): | 500 |
| Manufacturer's brand: | Permaglide |
| Material: | steel-PTFE |
| Maximum temperature °C: | +280 |
| Minimum temperature °C: | -200 |
| Width B (mm): | 250 |
| Width s (mm): | 2,5 |
| Značení: | PAS25250 P10 |
| Typ: | pásek |
