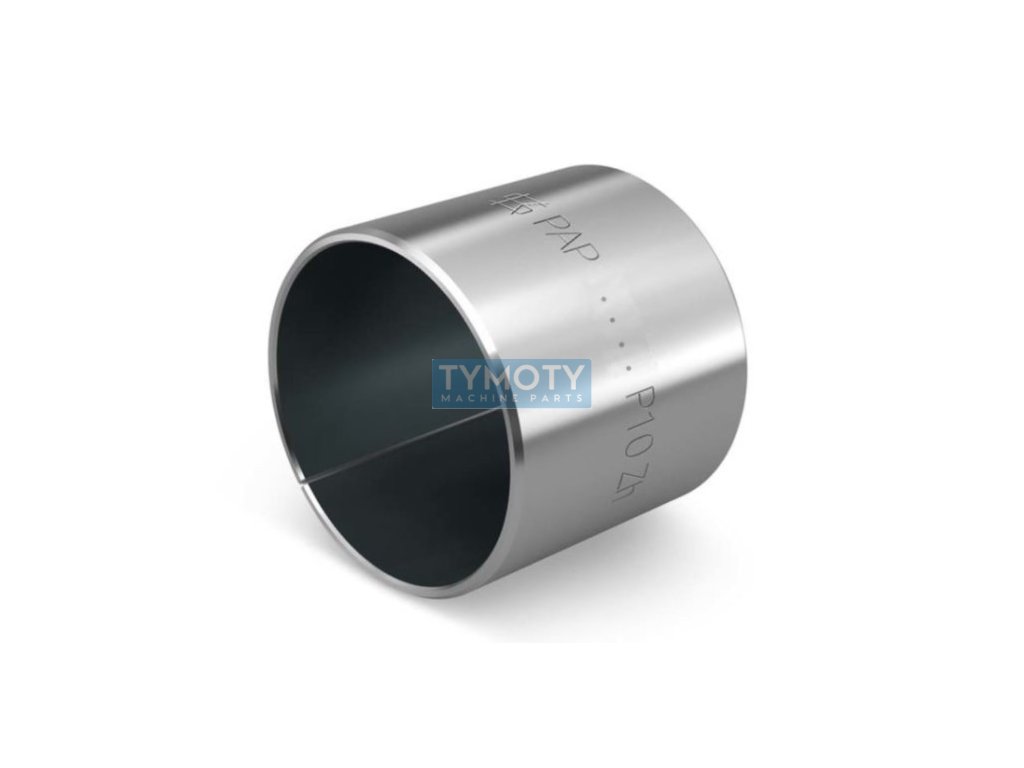

Permaglide PAP 1612 P10 sliding sleeve, steel-PTFE

Product detailed description

Permaglide PAP 1612 P10 sliding bushing is a high-quality component designed for applications requiring reliable sliding properties without the need for additional lubrication. This bushing is made of sheet steel, which is coated with a layer of PTFE (polytetrafluoroethylene) composite, which guarantees excellent sliding properties and long service life. PTFE is known for its low coefficient of friction and resistance to chemicals, which makes this material ideal for use in harsh conditions.

The bushing design is rolled, which allows for easy assembly and high accuracy during installation. The bushing dimensions are as follows: the inner diameter (d) is 16 mm, the outer diameter (D) is 18 mm and the width (B) is 12 mm. This dimensional profile is suitable for a wide range of applications, including those where precise movement control and wear minimization are required.

Permaglide PAP 1612 P10 is designed for operation in extreme temperature conditions, with a range from -200 °C to +280 °C. This wide temperature tolerance allows for use in various industries, including the automotive, aerospace and mechanical engineering industries. The bushing is maintenance-free, which means it is ideal for dry-running applications where regular lubrication is not possible or practical.

The weight of the bushing is 0.005 kg, which contributes to its easy handling and installation. The lead content in the steel base provides additional wear resistance and improved sliding properties. This product is marked with the code PAP1612 P10 and is part of the Permaglide brand range, which is known for its innovative solutions in the field of plain bearings.
