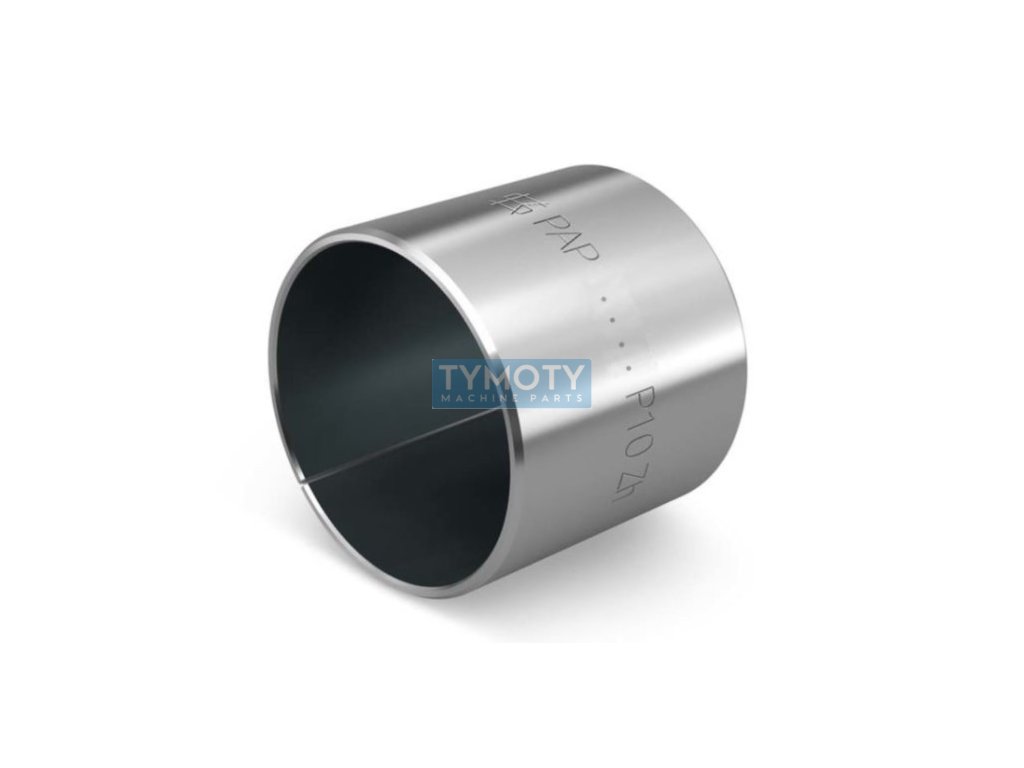

Permaglide PAP 0304 P10 sliding sleeve, steel-PTFE

Product detailed description

Permaglide PAP 0304 P10 plain bearing is a high-performance component designed for applications requiring reliable and maintenance-free operation. This bearing is made of a combination of steel and PTFE (polytetrafluoroethylene) composite material, which is known for its excellent sliding properties and wear resistance. The PTFE layer also contains lead, which improves its sliding properties and increases the service life of the bearing.

The bearing construction is based on rolled steel sheet, which provides high mechanical strength and stability. The dimensions of the bearing are precisely defined: the inner diameter (d) is 3 mm, the outer diameter (D) is 4.5 mm and the width (B) is 4 mm. These dimensions are optimized for precise and efficient use in various industrial applications.

Permaglide PAP 0304 P10 is designed for operation in a wide temperature range from -200 °C to +280 °C, which allows its use in extreme conditions. Thanks to its design and material composition, the bushing is suitable for dry-running applications, which eliminates the need for additional lubrication and maintenance. This reduces operating costs and increases the reliability of the entire system.

With a weight of only 0.01 kg, this bushing is lightweight, which contributes to reducing the overall weight of the equipment in which it is used. The manufacturer Permaglide guarantees high quality and reliability of its products, which is also confirmed by the product designation PAP0304 P10 and the serial number 80261500. This component is ideal for a wide range of industrial applications where high demands are placed on sliding properties and wear resistance.
