Permaglide PAF 10070 P10 sliding flange housing, steel-PTFE/Pb
Code: 648246
Product detailed description

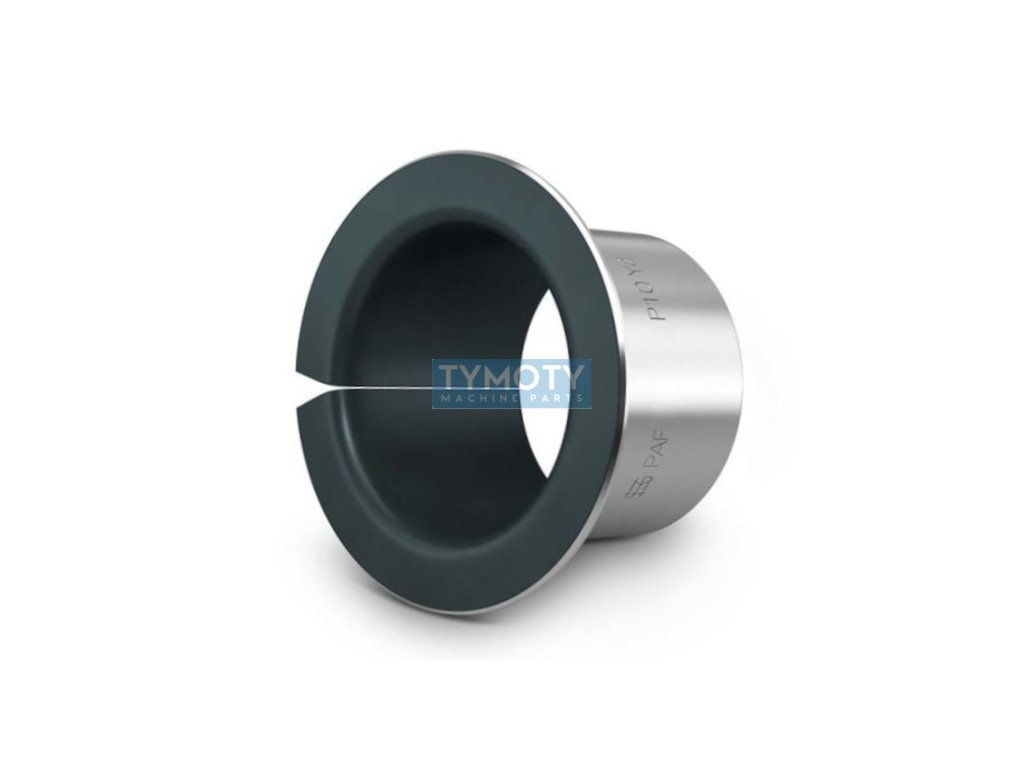

Permaglide PAF 10070 P10 is a flanged plain bearing made of sheet steel with a PTFE/Pb composite layer. This product is designed for applications where high wear resistance and a low coefficient of friction are required. The inner diameter of the bearing is 10 mm, the outer diameter is 12 mm and the overall width of the bearing is 7 mm. The flange has a diameter of 18 mm and a width of 1 mm.The material composition includes steel with a PTFE (polytetrafluoroethylene) surface layer containing lead, which guarantees excellent sliding properties and the ability to operate in a wide temperature range from -200 °C to +250 °C. This type of bushing is ideal for dry-running applications where no additional lubrication or maintenance is required, reducing operating costs and increasing equipment reliability.
Permaglide PAF 10070 P10 is suitable for various industrial applications where high precision and reliability are required, such as in the automotive industry, mechanical engineering or equipment manufacturing. Thanks to its design and material properties, it provides a long service life even in harsh conditions. The product has a weight of 0.003 kg and is marked with the manufacturer's number 81446507.
Additional parameters
| Category: | Bearings > slippery > flanged bushings > steel - PTFE/Pb composite > d = 10 mm |
|---|---|
| Weight: | 0.003 kg |
| EAN: | 4028977660412 |
| Diameter D (mm): | 10, 12 |
| Diameter d1 (mm): | 18 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | Permaglide |
| Material: | steel-PTFE |
| Maximum temperature °C: | +250 |
| Minimum temperature °C: | -200 |
| Width B (mm): | 7 |
| Width B1 (mm): | 1 |
| Číslo výrobce: | 81446507 |
| Značení: | PAF10070 P10 |
| Typ: | přírubové kluzné pouzdro s kompozitem PTFE |
