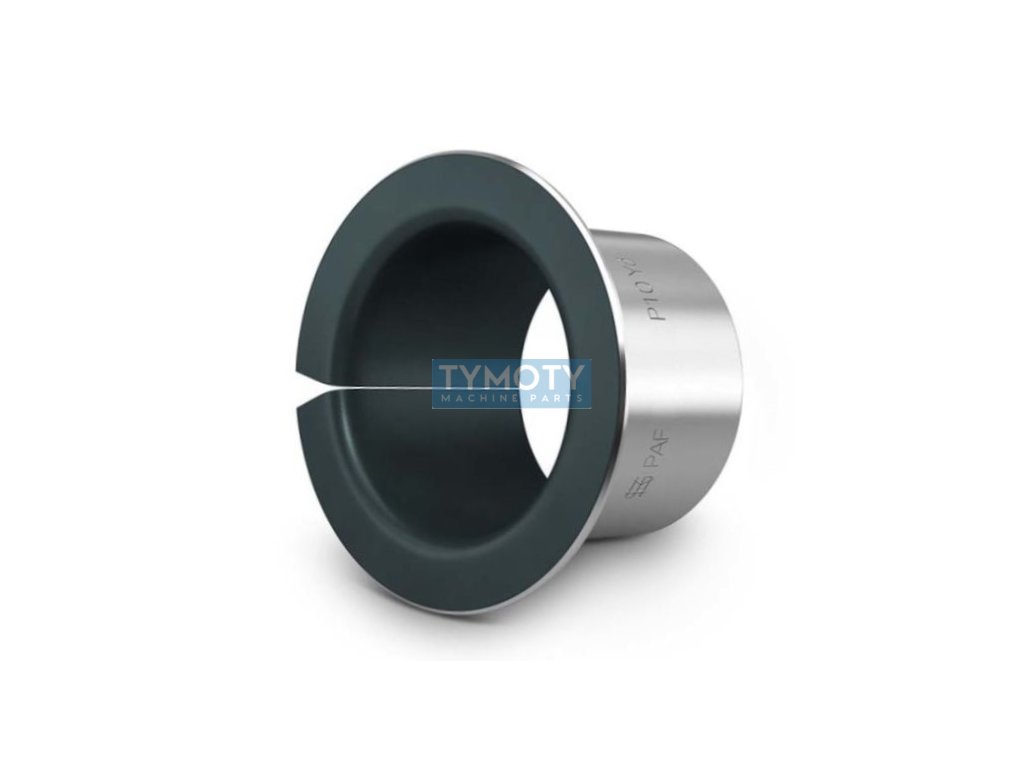

Permaglide PAF 08075 P10 sliding flange housing, steel-PTFE/Pb

Product detailed description

Permaglide PAF 08075 P10 is a flanged plain bearing designed for applications requiring high precision and reliability. The bearing is made of sheet steel, which is coated with a lead (Pb) PTFE composite material. This composite material provides excellent sliding properties and allows operation without the need for lubrication, which is ideal for dry-running applications.

The design dimensions of the bearing are as follows: the inner diameter (d) is 8 mm, the outer diameter (D) is 10 mm, and the overall width (B) is 7.5 mm. The flange has an outer diameter (D1) of 15 mm and a width (B1) of 1 mm. These dimensions are optimized for precise fit in mechanical assemblies where minimal clearance and maximum stability are required.

The steel-PTFE/Pb material composition gives the housing exceptional wear resistance and the ability to operate in a wide temperature range from -200 °C to +280 °C. This property is key for applications in extreme conditions where conventional materials are inadequate.

The housing is lightweight, weighing only 0.002 kg, which contributes to reducing the overall weight of the structure in which it is used. Thanks to its properties, it is suitable for various industrial applications, including the automotive industry, mechanical engineering and other areas where reliable and maintenance-free operation is required.

Permaglide PAF 08075 P10 is designated as a maintenance-free solution, which means that it does not require additional lubrication during its service life, thereby reducing maintenance costs and increasing operational efficiency.
