O-ring NBR 90 ShA 12.5x2 Dichtomatik
Code: 274014
Product detailed description
The O-ring with dimensions 12.5 x 2 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring and the sealed space create a seal.Material NBR - nitrile-butadiene rubber, standard material for O-rings, suitable for mineral oils and their emulsions, hydraulic fluids, water and glycols, engine and gear oils, kerosene. />

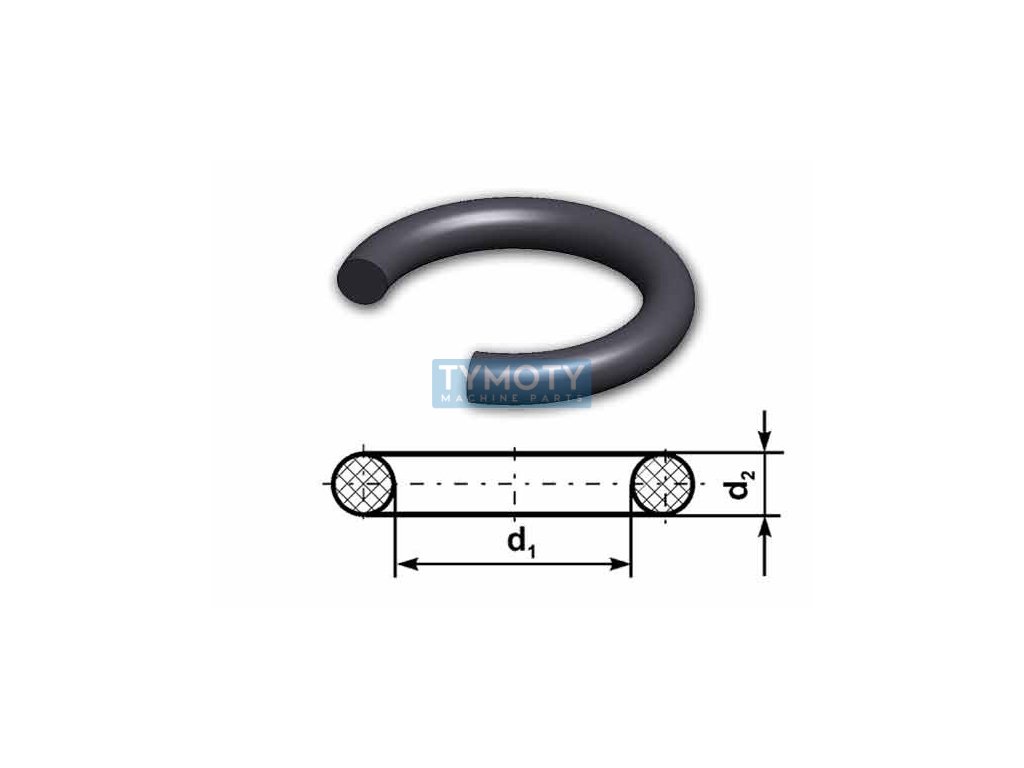

The O-ring dimension is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9281 and PN 01 32 12.5 x 2 NBR90 D
Additional parameters
| Category: | Seal > O-rings > NBR hardness 90 ShA |
|---|---|
| Diameter D (mm): | 12,5 |
| Diameter D2 (mm): | 2 |
| Hardness: | 90 |
| Manufacturer's brand: | Dichtomatik |
| Material: | NBR |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -25 |
| Typ: | O-kroužek |
