O-ring NBR 60 ShA 180x3 Rubena
Code: 270258
Product detailed description
The 180 x 3 O-ring is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring is an annulus, a ring with a circular cross-section. The installation space, usually a groove, serves to accommodate the O-ring. The connection of the O-ring elements and the sealed space creates a seal.Material NBR - nitrile-butadiene rubber, standard material for O-rings, suitable for mineral oils and their emulsions, hydraulic fluids, water and glycols, engine and gear oils, engine and gear oils, greases, air.

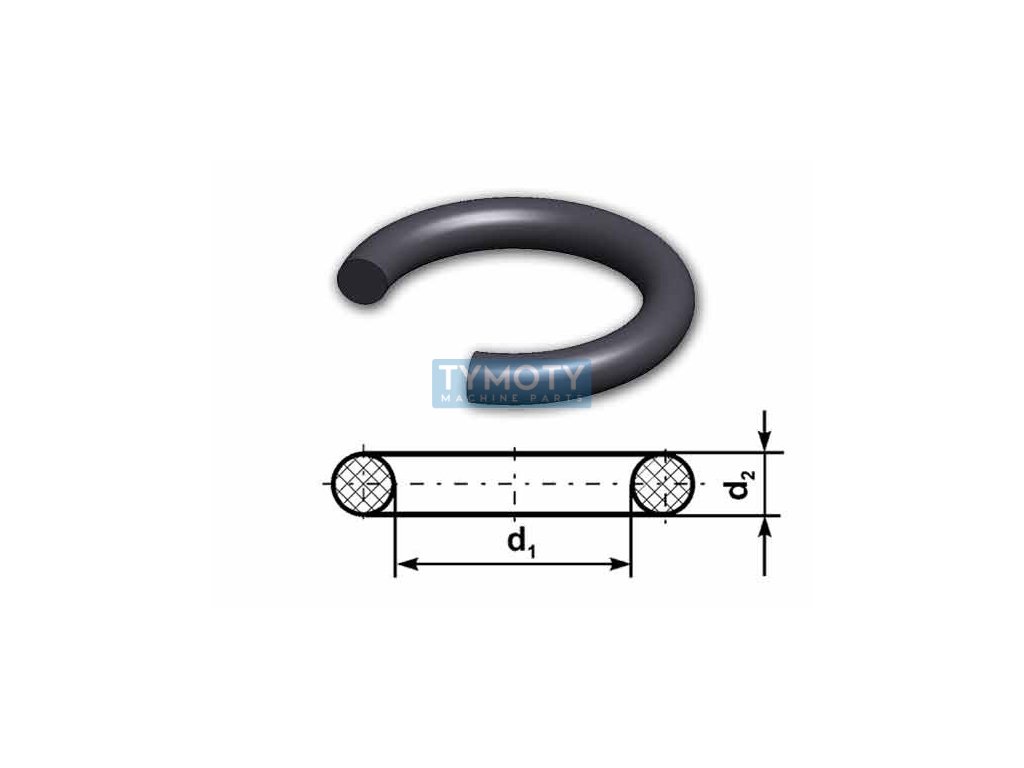

The size of the O-ring is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9381 and 3. O-ring 180 x 3 NBR60 Rub
Additional parameters
| Category: | Seal > O-rings > NBR hardness 60 ShA |
|---|---|
| Diameter D (mm): | 180 |
| Diameter D2 (mm): | 3 |
| Hardness: | 60 |
| Manufacturer's brand: | Rubena |
| Material: | NBR |
| Maximum temperature °C: | +70 |
| Minimum temperature °C: | -30 |
| Typ: | O-kroužek |
