O-Ring MVQ 80 ShA 19.6x2.3 (24x20) Rubena
Code: 271269
Product detailed description
The O-ring with dimensions 19.6 x 2.3 (24 x 20) is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. O-ring. The connection of the O-ring elements and the sealed space creates a seal.Material MVQ silicone rubber, suitable for acid and alkali environments, partially resistant to non-aggressive oils, especially harmless at higher temperatures.

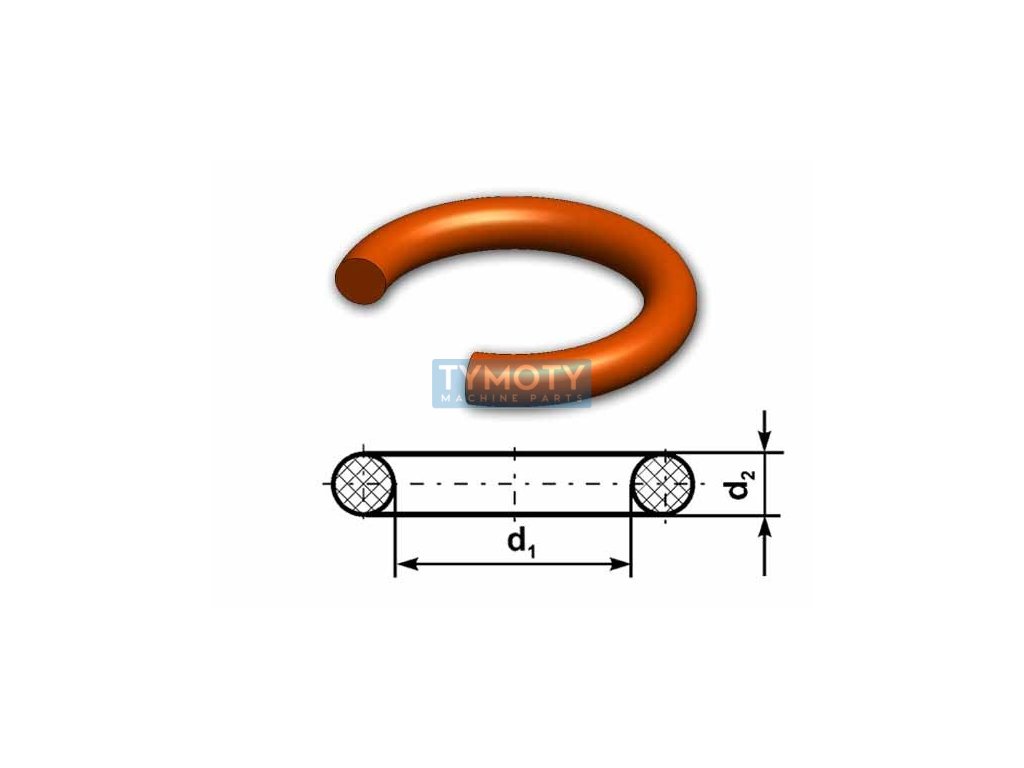

The O-ring dimension is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9381 and PN 02 9281 and PN 02 9281. O-ring 19.6 x 2.3
Additional parameters
| Category: | Seal > O-rings > MVQ hardness 80 ShA |
|---|---|
| Diameter D (mm): | 19,6 |
| Diameter D2 (mm): | 2,3 |
| Hardness: | 80 |
| Manufacturer's brand: | Rubena |
| Material: | MVQ |
| Maximum temperature °C: | +180 |
| Minimum temperature °C: | -55 |
| Typ: | O-kroužek |
