O-ring MVQ 70 ShA 9.19x2.62 Dichtomatik
Code: 276662
Product detailed description

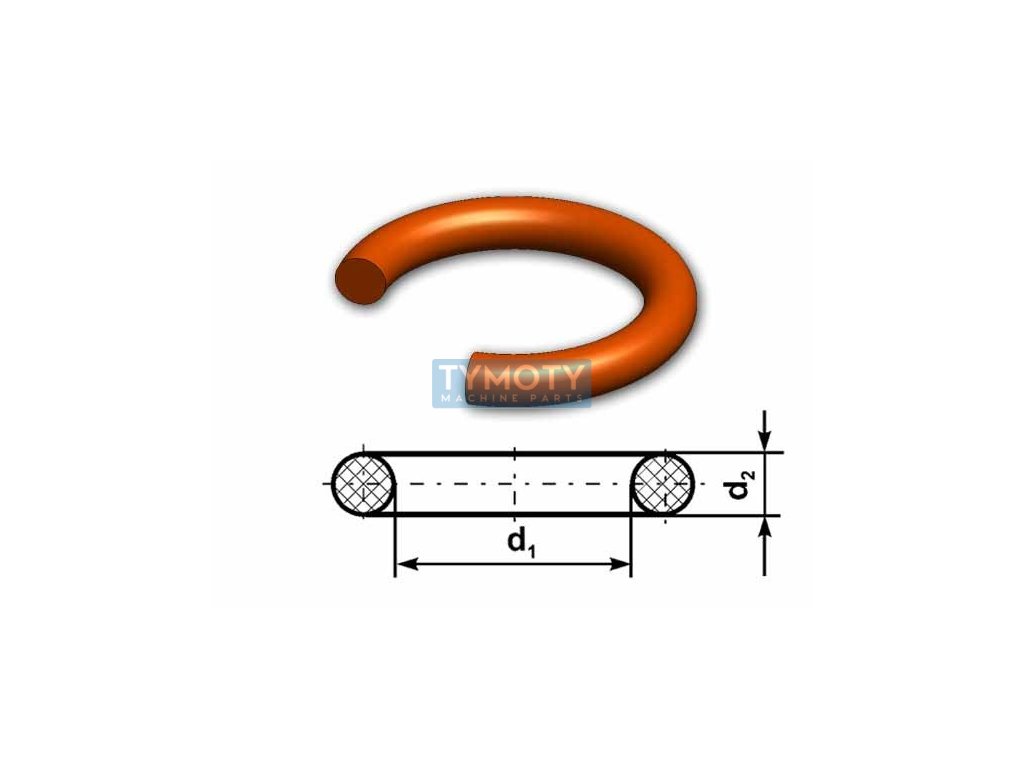

The O-ring with dimensions 9.19 x 2.62 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring and the sealed space create a seal.Material MVQ silicone rubber, suitable for acid and alkali environments, partially resistant to non-aggressive oils, especially at higher temperatures. The O-ring dimension is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9281 and PN 02 9283, DIN. 2.62 MVQ70 D
Additional parameters
| Category: | Seal > O-rings > MVQ hardness 70 ShA |
|---|---|
| Diameter D (mm): | 9,19 |
| Diameter D2 (mm): | 2,62 |
| Hardness: | 70 |
| Manufacturer's brand: | Dichtomatik |
| Material: | MVQ |
| Maximum temperature °C: | +180 |
| Minimum temperature °C: | -55 |
| Typ: | O-kroužek |
