O-ring FPM 80 ShA 354.97x5.33 Dichtomatik
Code: 275577
Product detailed description

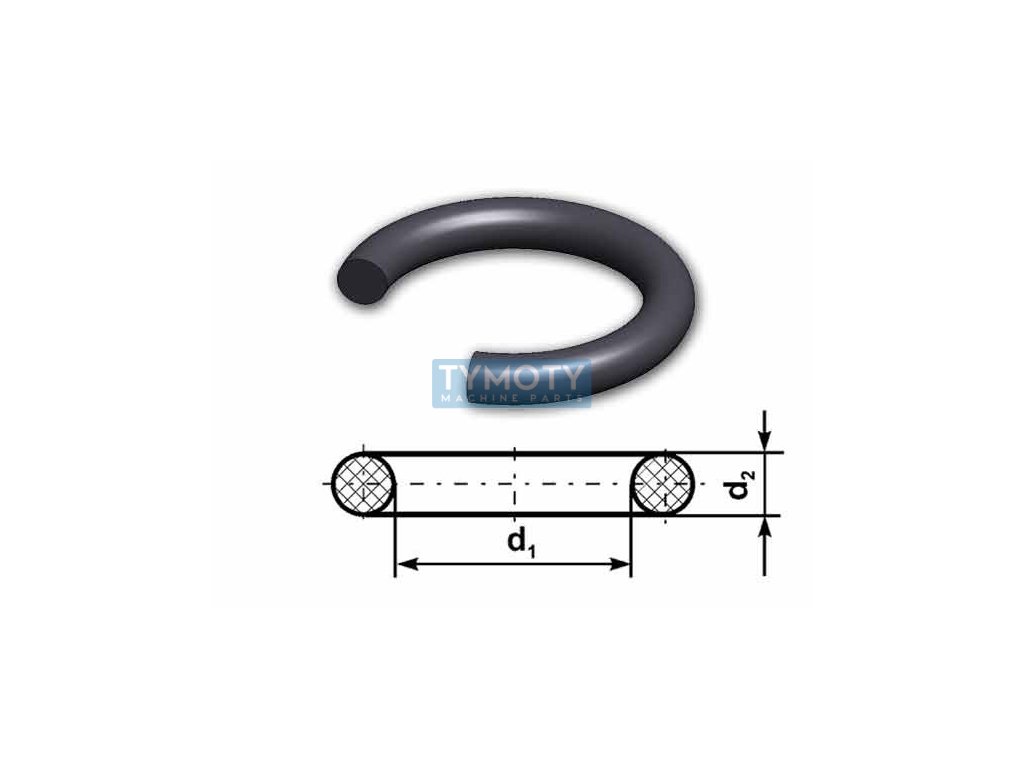

The O-ring measuring 354.97 x 5.33 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring is an annulus, a ring with a circular cross-section. The installation space, usually a groove, serves to accommodate the O-ring. The connection of the O-ring elements and the sealed space creates a seal.The material FPM - fluororubber is suitable for mineral oil environments, good resistance to ozone and chemicals, aromatic and aliphatic hydrocarbons, minimal gas permeability. Resistance to hot water and steam up to 180 °C. The O-ring size is given as the inner diameter d1 x d2 thickness. O-rings are made up of dimensional series according to DIN 3770, PN 02 02 92 9283, DIN 3771 standards. O-ring 354.97 x 5.33 FPM80 Dichtomatik
Additional parameters
| Category: | Seal > O-rings > FPM hardness 80 ShA |
|---|---|
| Diameter D (mm): | 354,97 |
| Diameter D2 (mm): | 5,33 |
| Hardness: | 80 |
| Manufacturer's brand: | Dichtomatik |
| Material: | FPM |
| Maximum temperature °C: | +220 |
| Minimum temperature °C: | -20 |
| Typ: | O-kroužek |
