O-ring EPDM 70 ShA 12.37x2.62 Dichtomatik
Code: 274871
Product detailed description

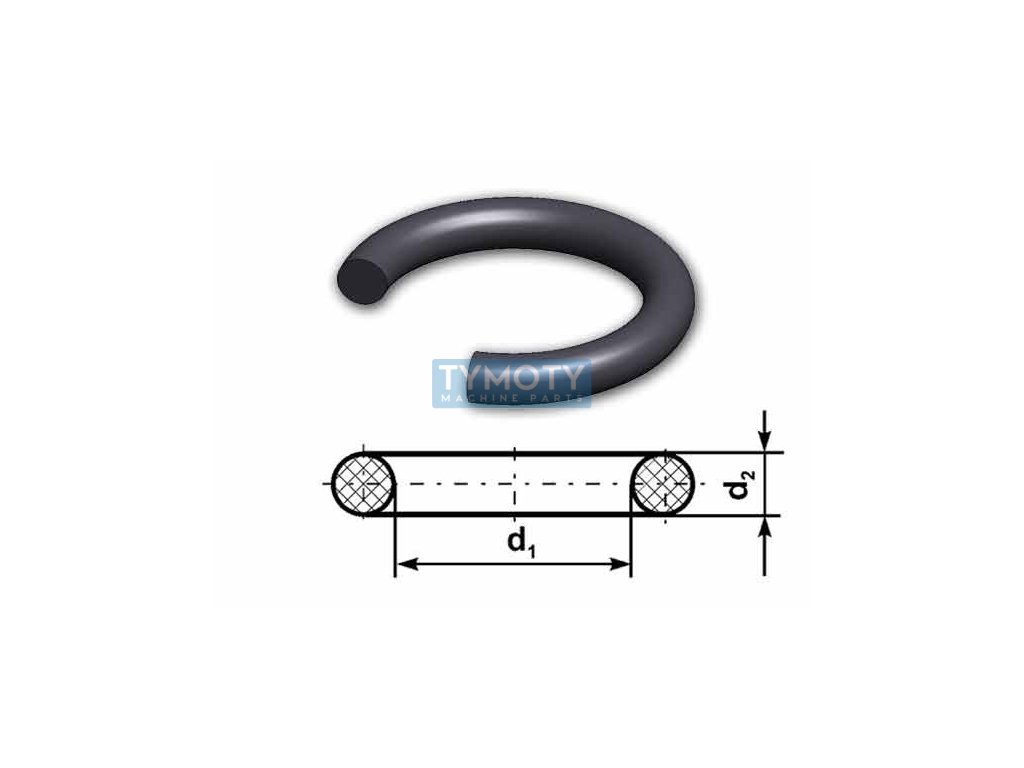

The O-ring measuring 12.37 x 2.62 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring is an annulus, a ring with a circular cross-section. The installation space, usually a groove, serves to accommodate the O-ring. The connection of the O-ring elements and the sealed space creates a seal.The material EPDM - ethylene-propylene rubber is suitable for steam and hot water, resistant to some pressure fluids (brake), diluted acids and alkalis (washing lye). The size of the O-ring is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9281 and PN 02 9283, DIN standards. 2.62 EPDM70 Dichtomatik - No. 53011
Additional parameters
| Category: | Seal > O-rings > EPDM hardness 70 ShA |
|---|---|
| Diameter D (mm): | 12,37 |
| Diameter D2 (mm): | 2,62 |
| Hardness: | 70 |
| Manufacturer's brand: | Dichtomatik |
| Material: | EPDM |
| Maximum temperature °C: | +130 |
| Minimum temperature °C: | -40 |
| Typ: | O-kroužek |
