O-ring EPDM 70 ShA 12.07x5.33 Dichtomatik
Code: 274869
Product detailed description

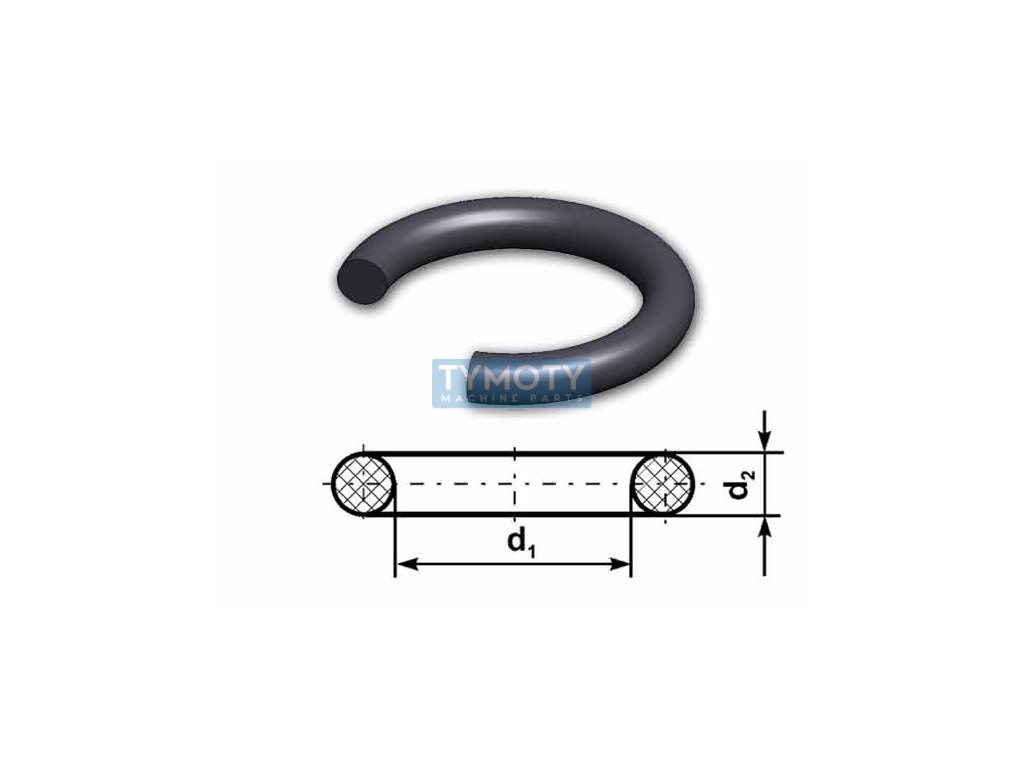

The O-ring measuring 12.07 x 5.33 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring and the sealed space create a seal.The material EPDM - ethylene-propylene rubber is suitable for steam and hot water, resistant to some pressure fluids (brake), diluted acids and alkalis (washing lye), ozone The O-ring is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to DIN 3770, PN 02 9280, PN 02 9281 and PN 02 9283 standards, DIN 37 EPDM70 Dichtomatik - No. 53101
Additional parameters
| Category: | Seal > O-rings > EPDM hardness 70 ShA |
|---|---|
| Diameter D (mm): | 12,07 |
| Diameter D2 (mm): | 5,33 |
| Hardness: | 70 |
| Manufacturer's brand: | Dichtomatik |
| Material: | EPDM |
| Maximum temperature °C: | +130 |
| Minimum temperature °C: | -40 |
| Typ: | O-kroužek |
