O-Ring AU 90 ShA 100x5 Rubena
Code: 271445
Product detailed description

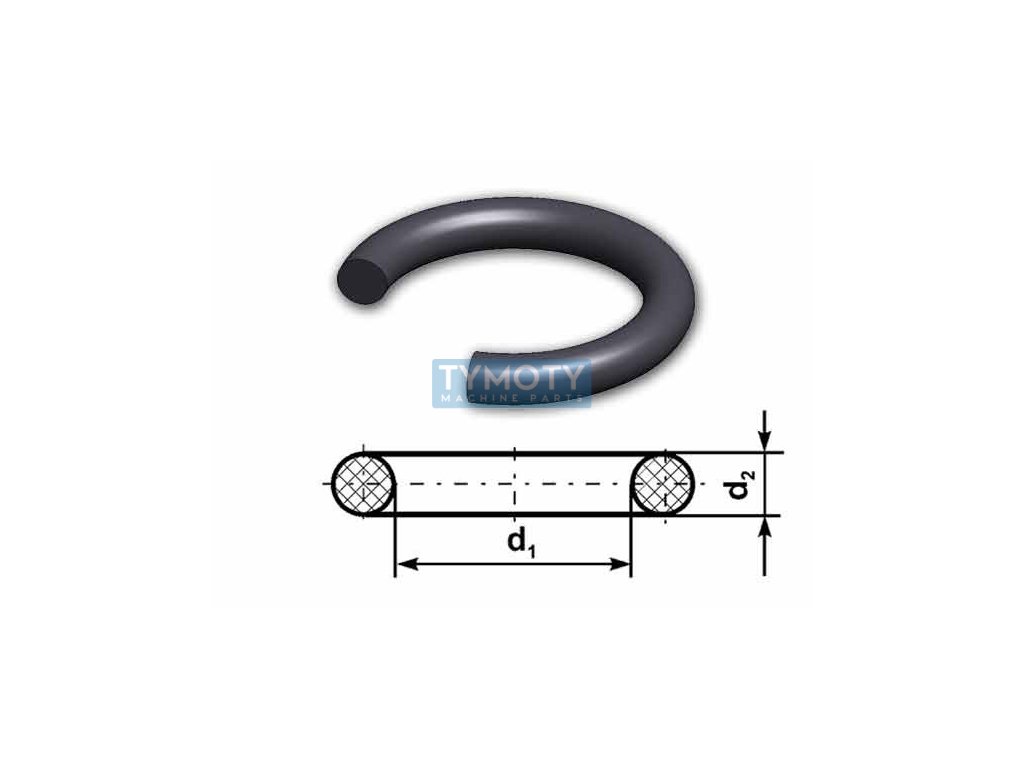

The O-ring measuring 100 x 5 is a rubber seal designed to prevent the loss of liquid or gas. The sealing ability depends not only on the O-ring, but also on the installation space. The O-ring is an annulus, a ring with a circular cross-section. The installation space, usually a groove, serves to accommodate the O-ring. The connection of the O-ring elements and the sealed space creates a seal.The material AU - polyurethane is suitable for mineral hydraulic oils, mineral engine and transmission oils, gasoline, diesel fuel, lubricating greases, aliphatic hydrocarbons and air. Oil and water emulsion max. +40 °C. The size of the O-ring is given as the inner diameter d1 x d2 thickness.
O-rings are made up of dimensional series according to the standards DIN 3770, PN 02 9220 0 9283, DIN 3771.
O-ring 100 x 5 AU90 Rubena - No. 065592
Additional parameters
| Category: | Seal > O-rings > AU hardness 90 ShA |
|---|---|
| Diameter D (mm): | 100 |
| Diameter D2 (mm): | 5 |
| Hardness: | 90 |
| Manufacturer's brand: | Rubena |
| Material: | AU |
| Maximum temperature °C: | +80 |
| Minimum temperature °C: | -25 |
| Typ: | O-kroužek |
